Line laser INSTRUMAX GREENLINER 3-360

Tech specification

Accuracy, mm/m±3/10
Compensator operating range, °±4
Protection against dust and moisture IP54
Laser diode, nm 520
Power supply4 x AA/1.5V
Operating temperature range, °C -10 to +50
Laser projection 3 lines 360°
Operating range40m
Operating range with receiver 70 m
Thread, inch 1/4

Complectation

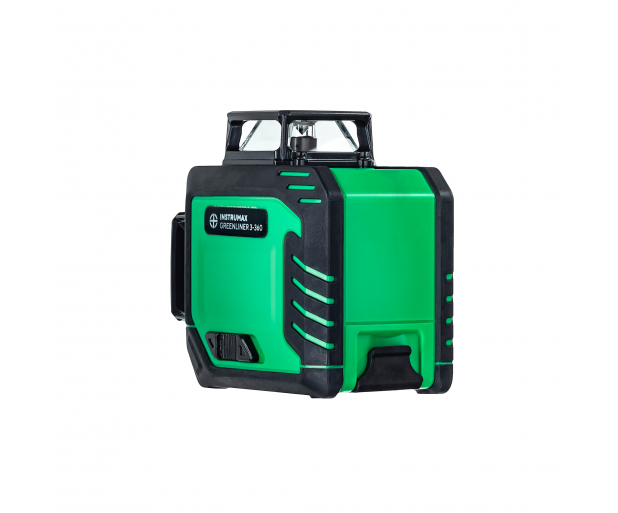

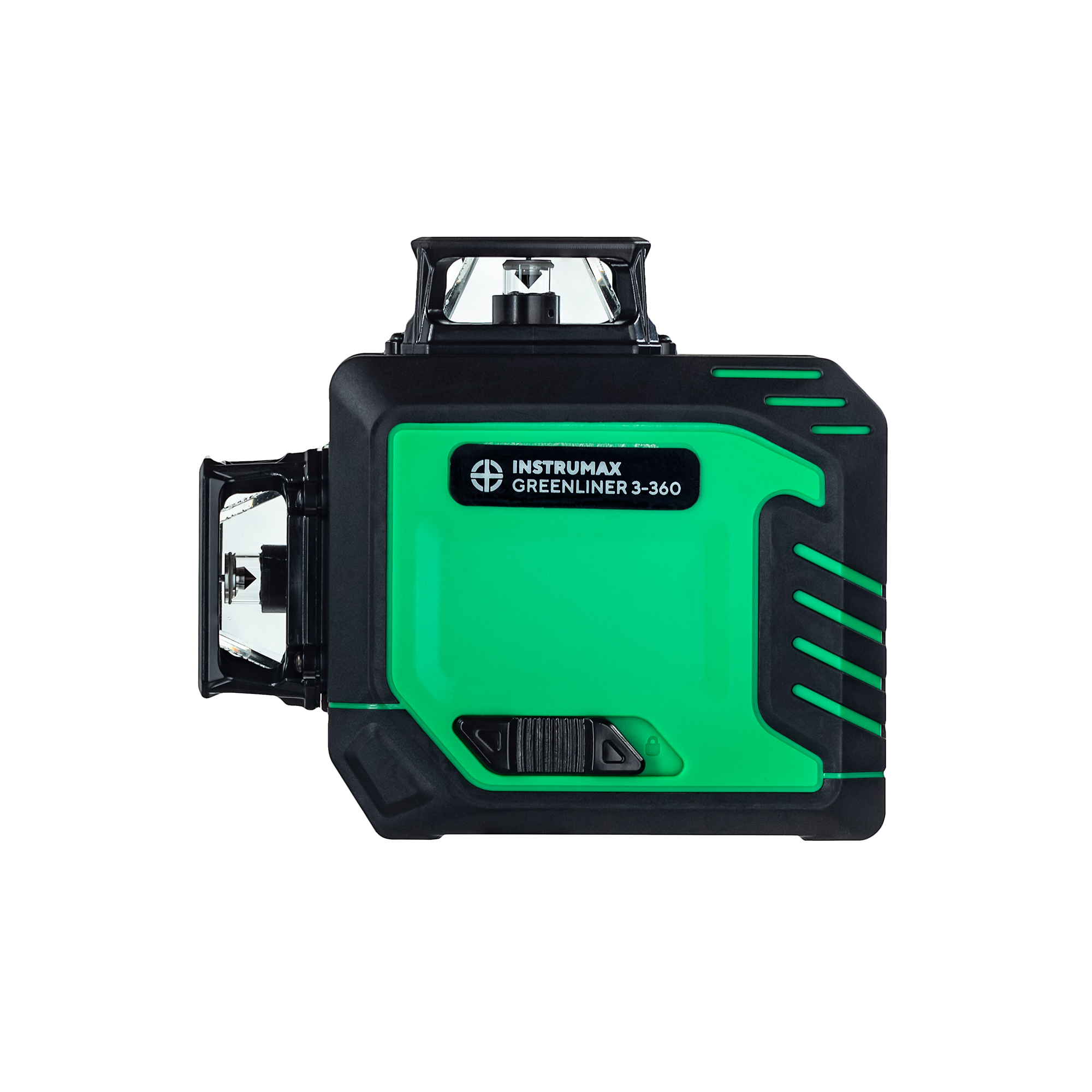

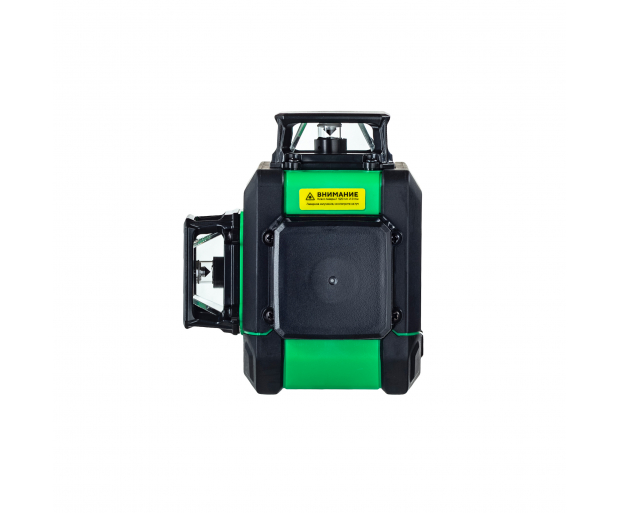

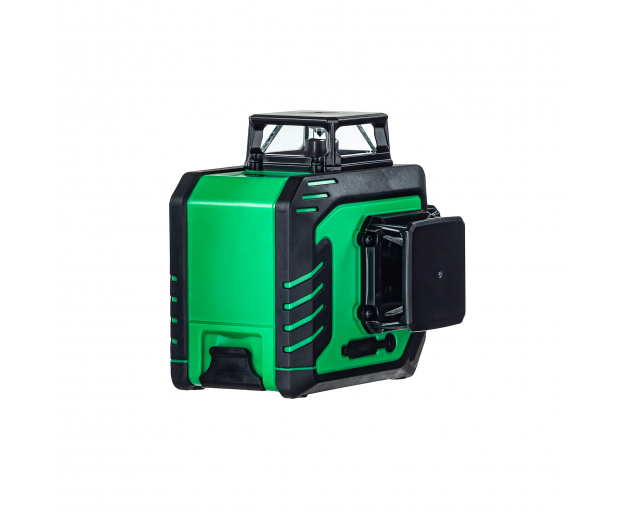

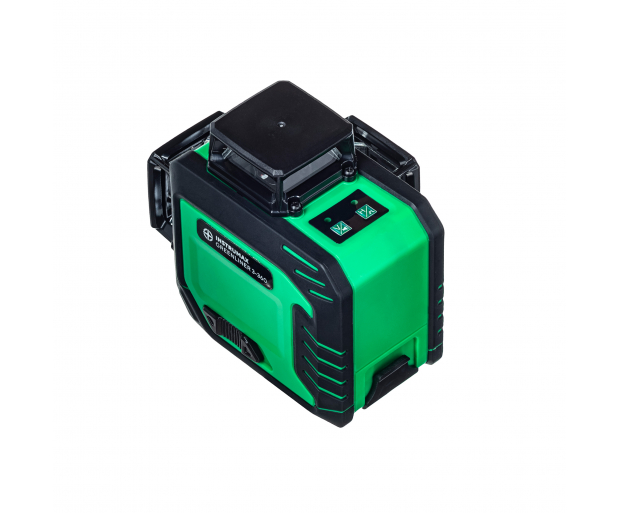

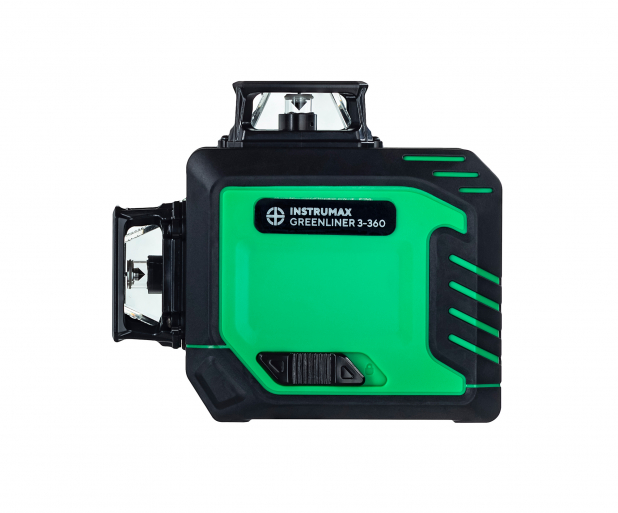

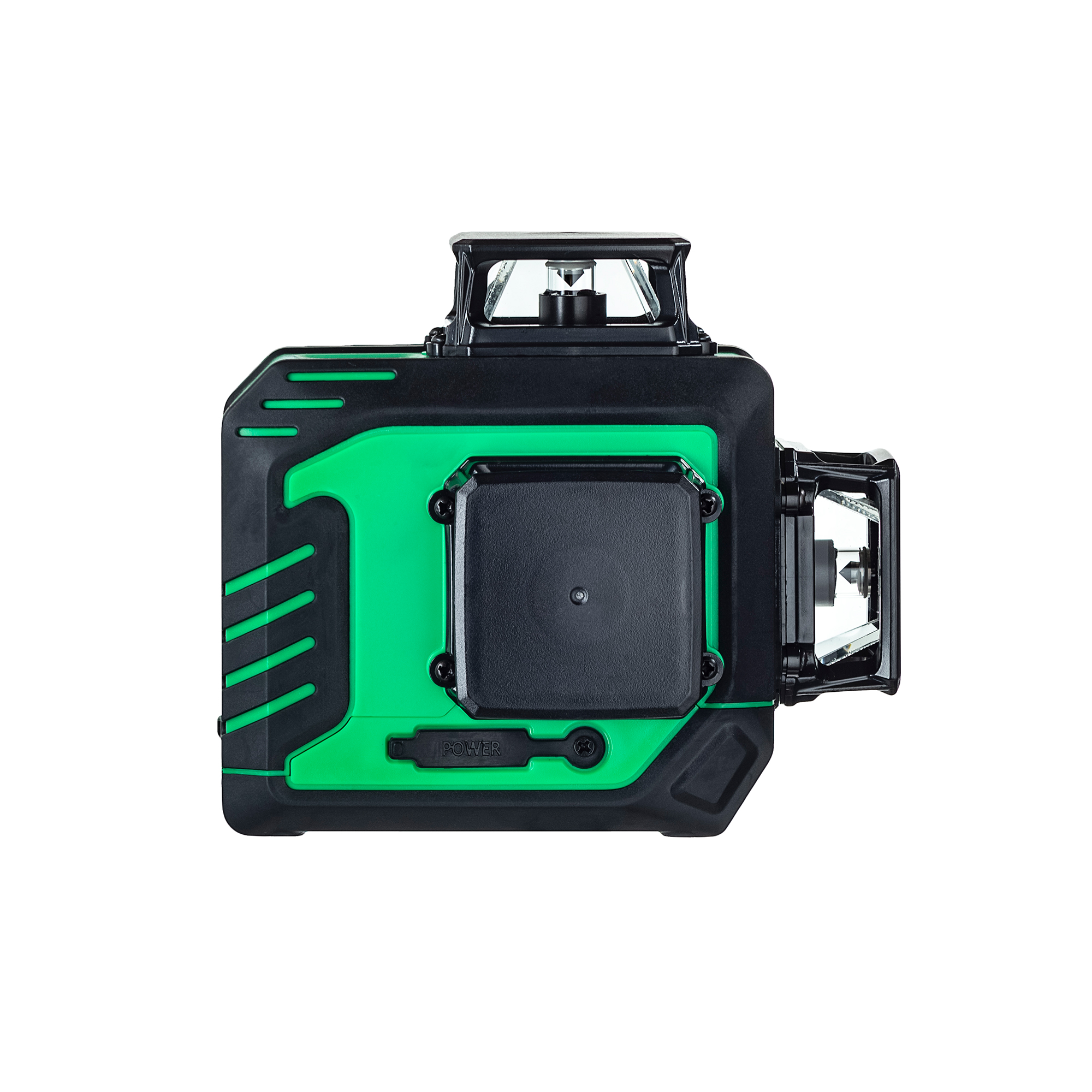

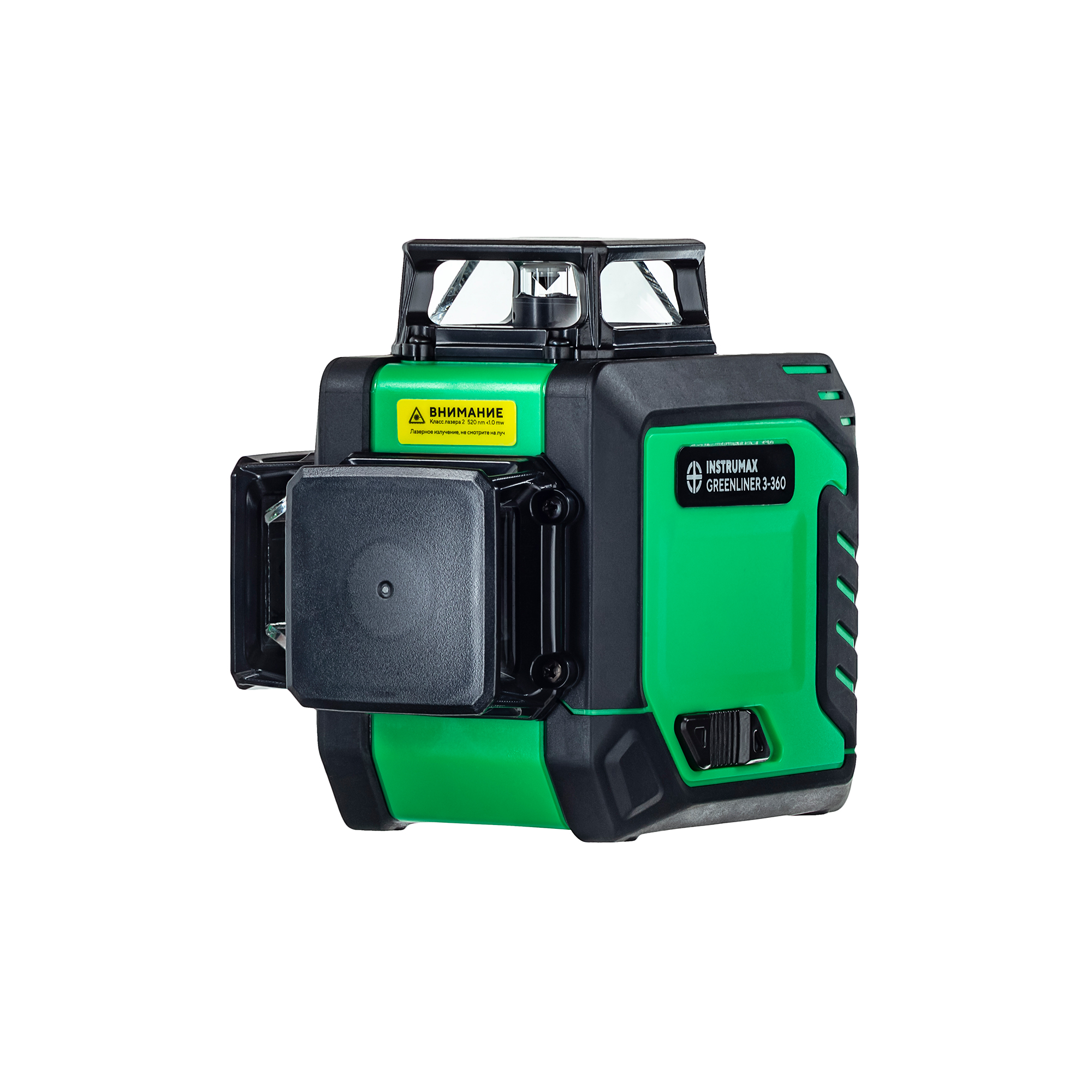

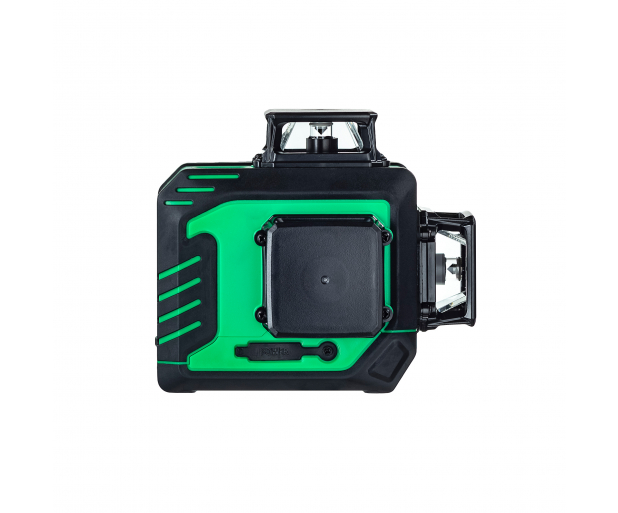

Line laser INSTRUMAX GREENLINER 3-360 is a line laser with three mutually perpendicular lines. The main feature of INSTRUMAX GREENLINER 3-360 is bright green rays. To build closed lines (360°), a special emitter is used. Allows you to carry out absolutely any marking when carrying out construction or repair work outside and inside the premises.

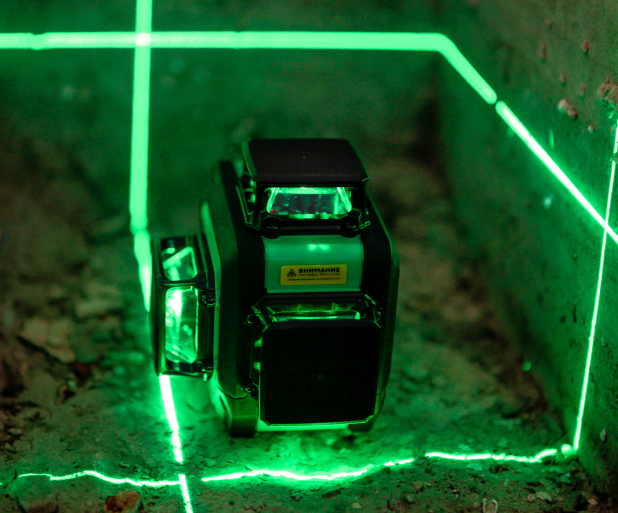

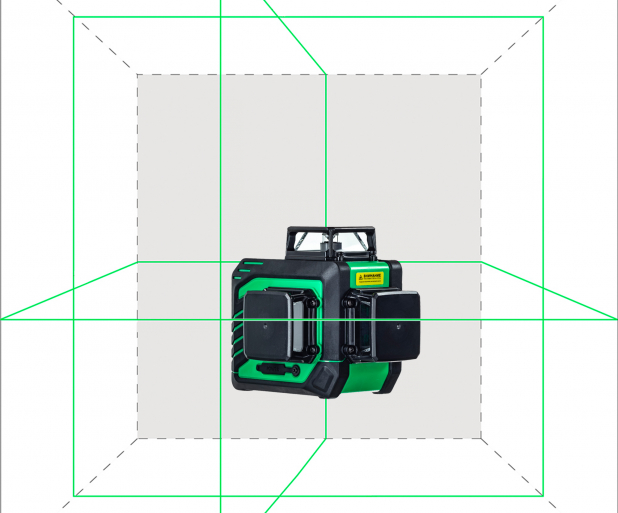

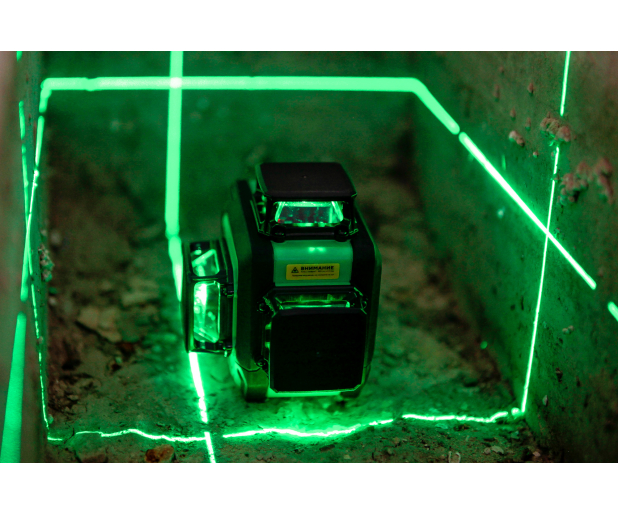

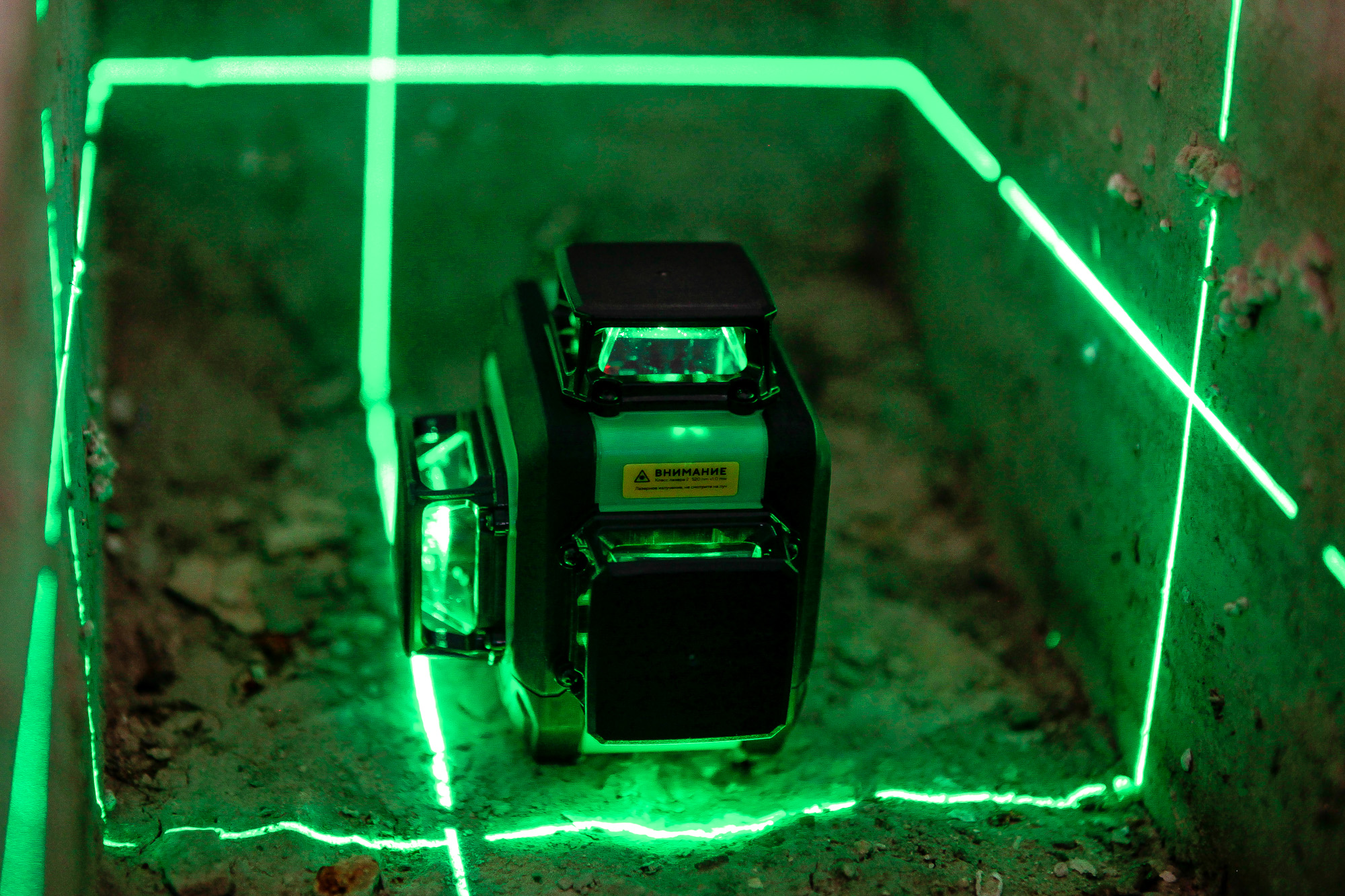

Convenient marking. The level projects three lines: one horizontal and two vertical. All lines have a 360° scan. The marking beam will be visible at any point. When vertical lines are included, projections that intersect at right angles are obtained. Very convenient for aligning walls and corners between walls. Laser lines can be turned off one by one, leaving only what is needed for work.

Green laser beam. The uniqueness of INSTRUMAX GREENLINER 3-360 is the green color of the laser beam. The green laser beam is much more visible than the red one under the same conditions.

Precise leveling and tilting. Level leveling is automatic when tilted no more than 4°. Tilt mode allows you to position the laser level at any angle. It is enough to turn off the sound alarm. This function may be needed, for example, when cladding an attic floor from the inside to lay all the cladding sheets in one plane.

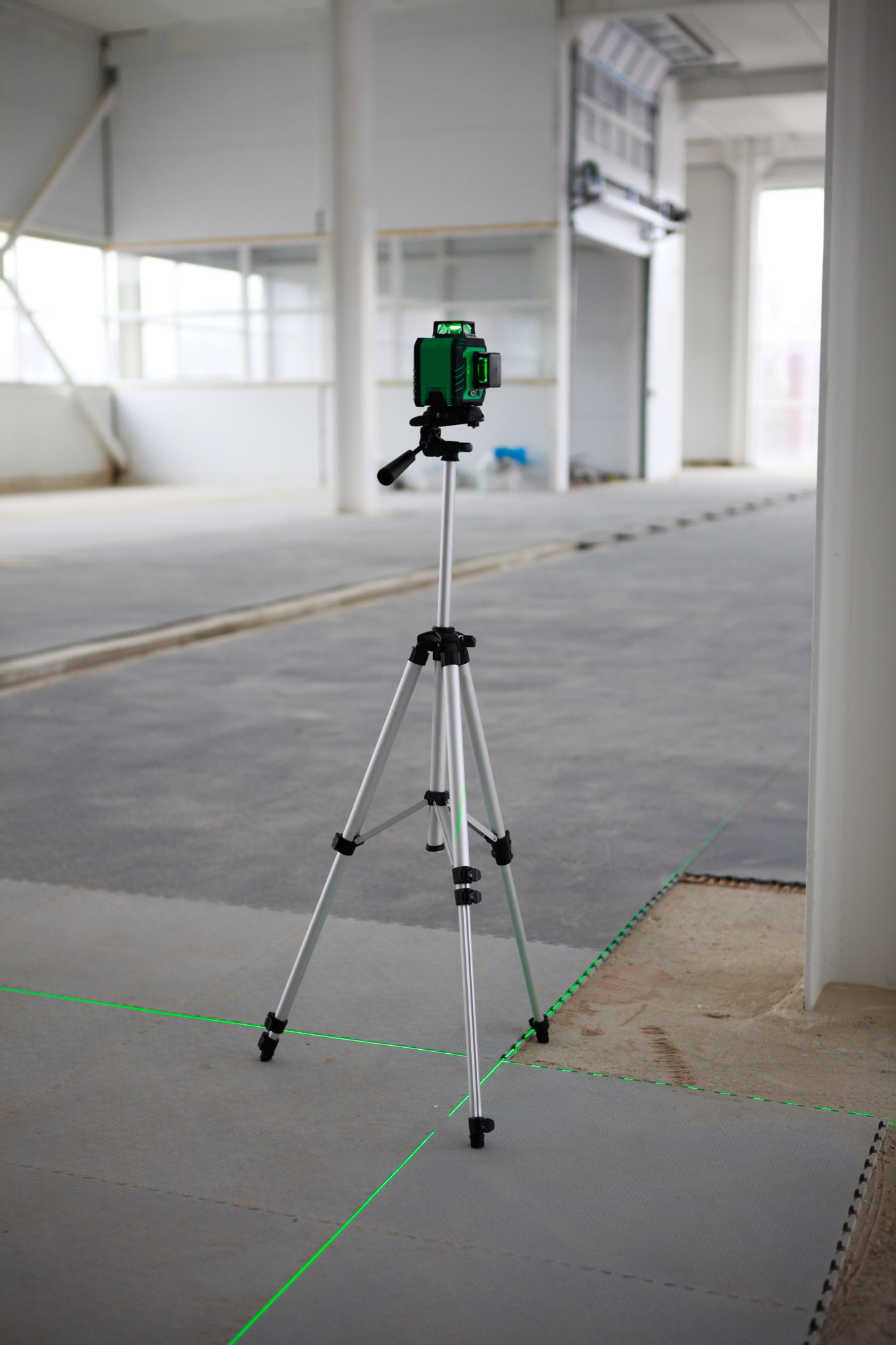

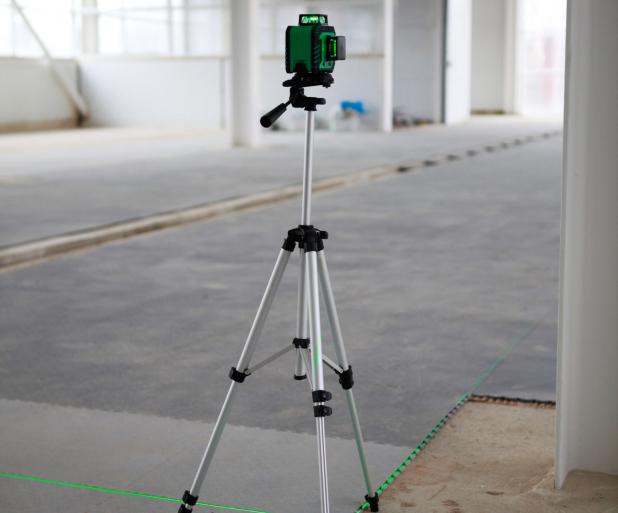

Convenient fastening. The INSTRUMAX GREENLINER 3-360 can be mounted to a tripod using a 1/4" threaded connection.

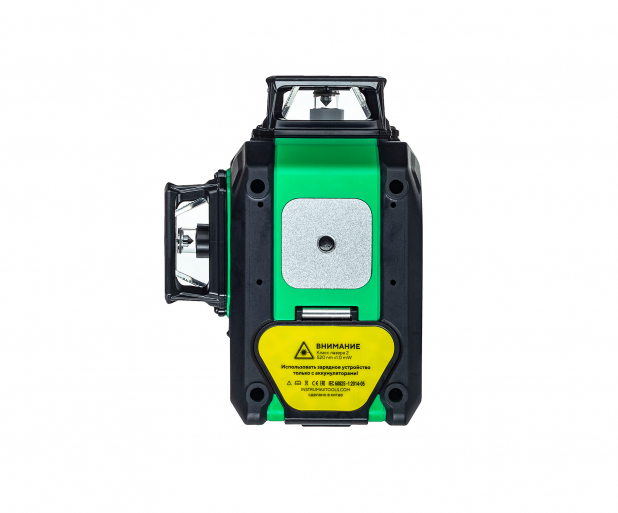

Works from a charger. INSTRUMAX GREENLINER 3-360 can operate from a charger connected to a household network if there are no batteries in the compartment. The batteries can also be replaced with AA batteries.

Receiver operation mode. For working in bright light, outdoors, there is a mode for working with the receiver. When this mode is turned on, the marking distance increases from 40 to 70 meters.

INSTRUMAX GREENLINER 3-360 is an excellent choice for marking work. Leveling surfaces, laying electrical wiring, installing doors and windows, marking plasterboard structures and suspended ceilings, building walls and partitions, and exterior finishing work will be done quickly and efficiently.
