Line laser INSTRUMAX GREENLINER 3-360/B SET

Tech specification

  • Accuracy, mm/m±3/10
  • Pendulum operating range, °±4
  • Protection against dust and moisture IP54
  • Laser diode, nm 520
  • Power source Li-ion battery 3.7V/4000mAh
  • Operating temperature range, °C -10 to +50
  • Laser projection4 lines 360°
  • Operating range40m
  • Operating range with receiver 70 m
  • Thread, inch 1/4

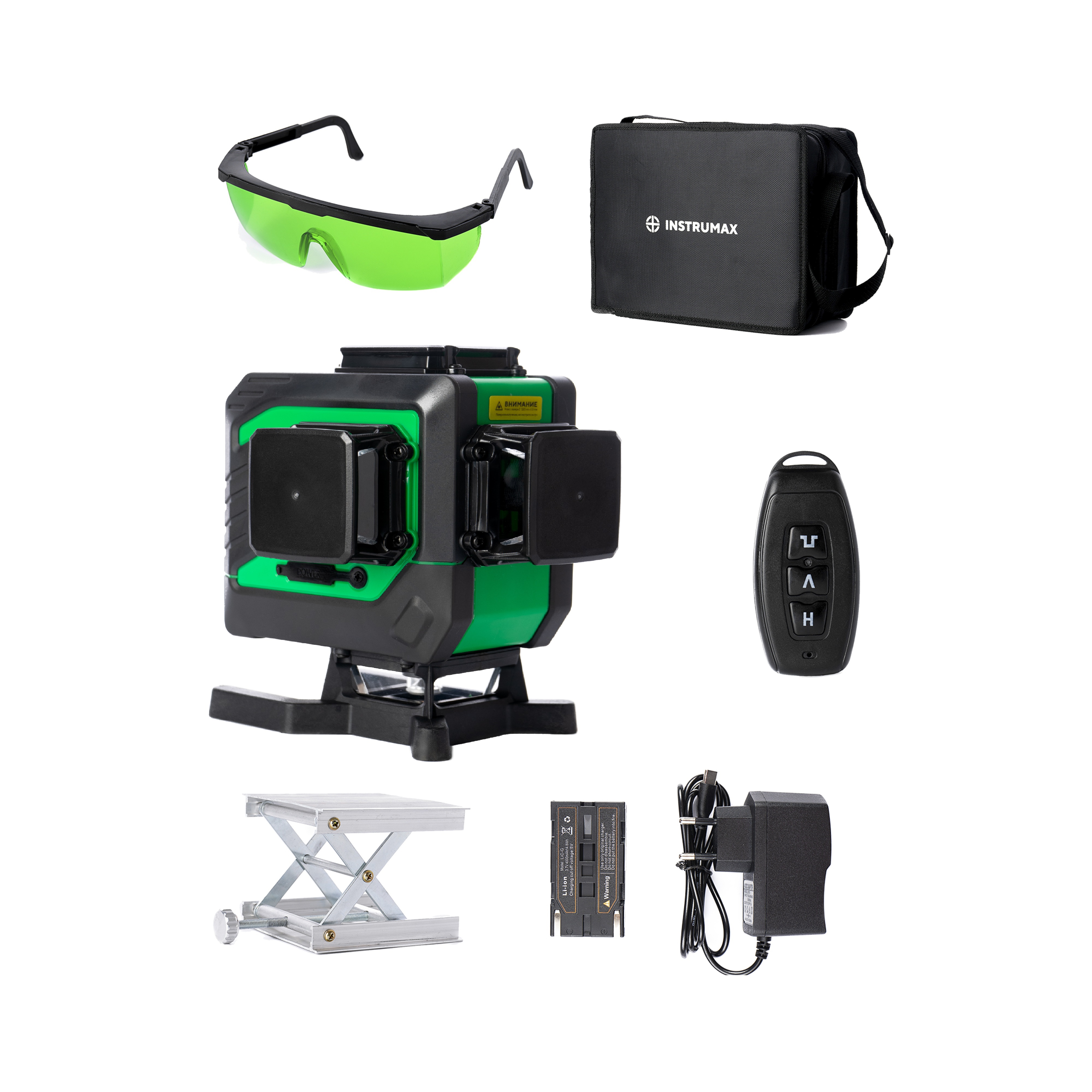

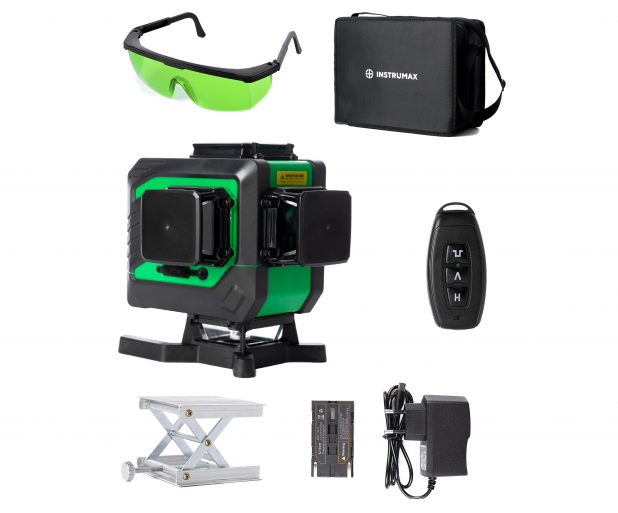

Complectation

  • Line laser
  • Case bag
  • Lithium battery
  • Charger
  • Lifting platform

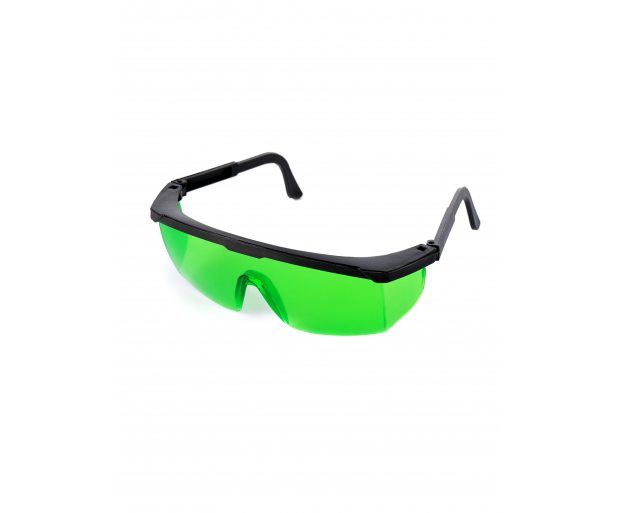

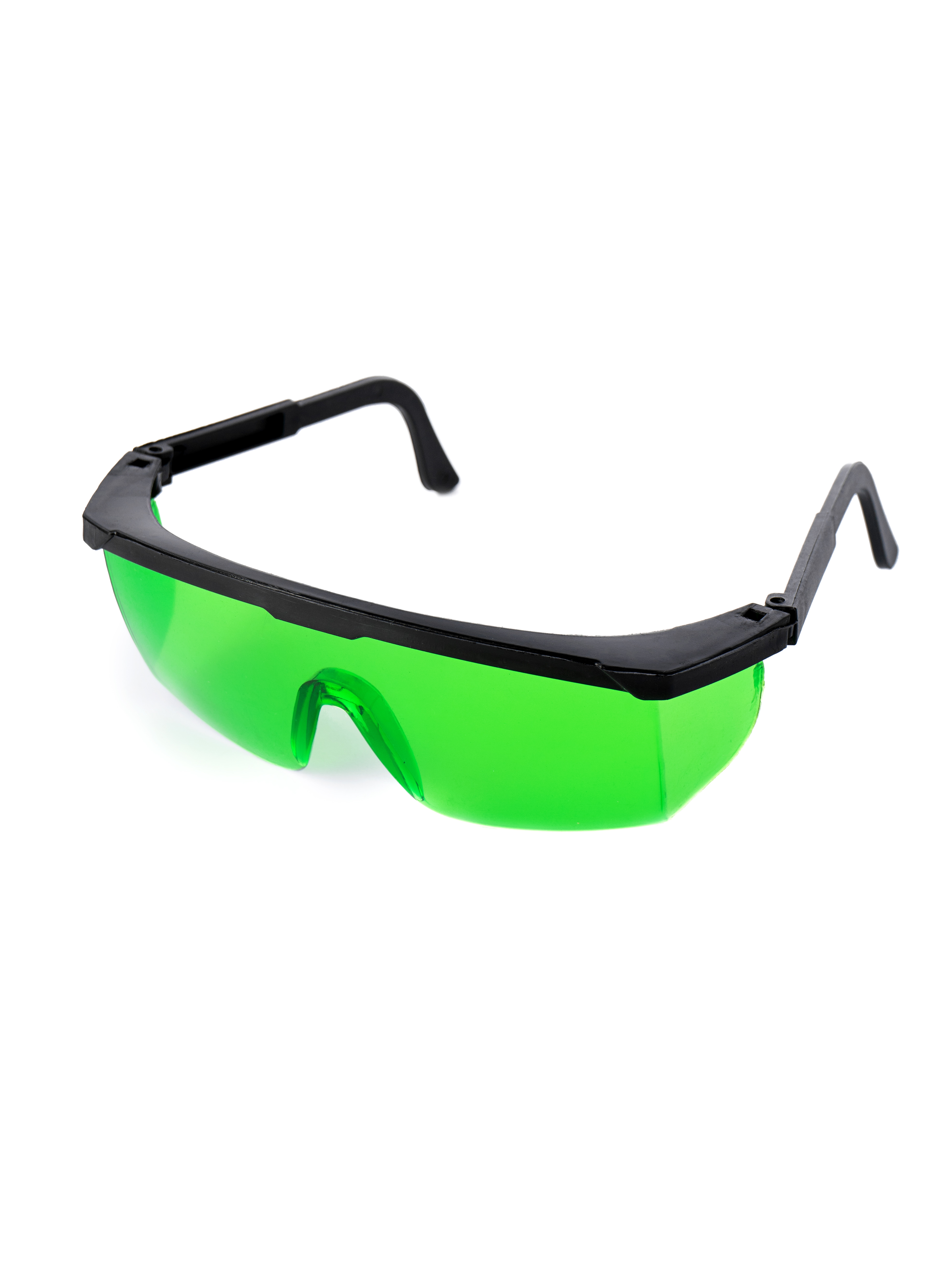

  • Laser glasses
  • Remote control
  • Instructions

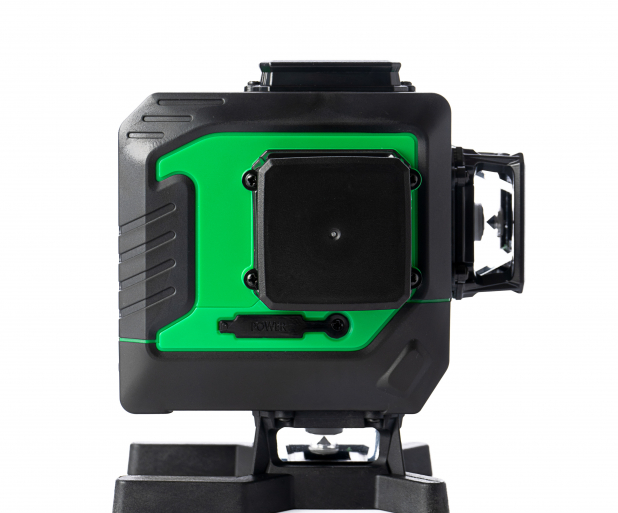

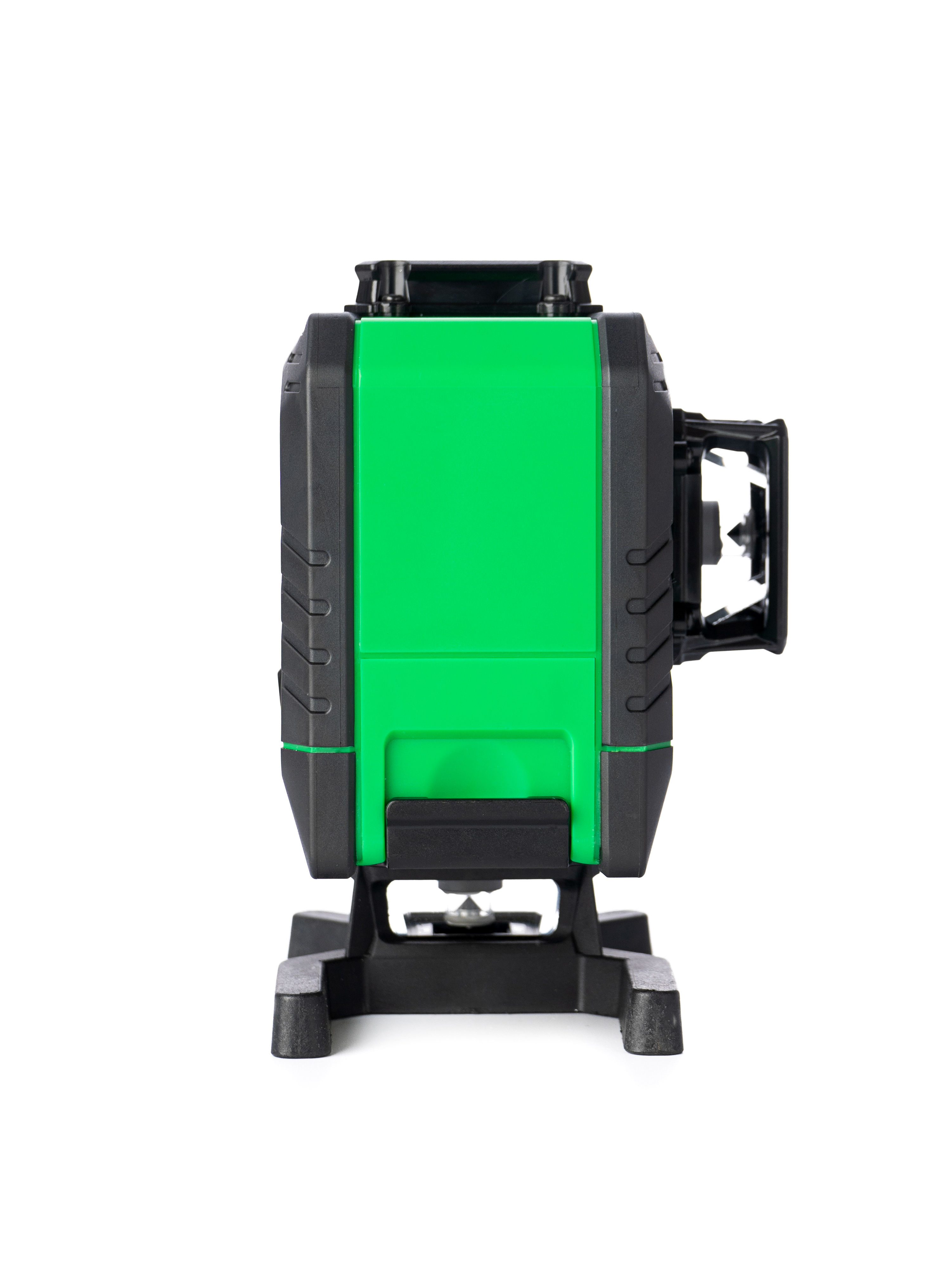

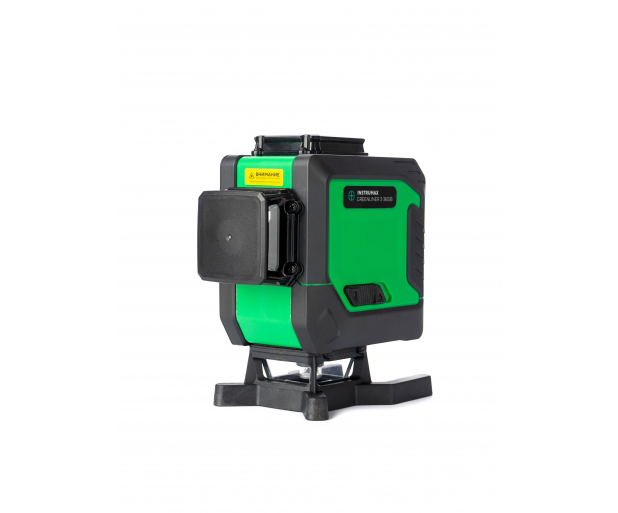

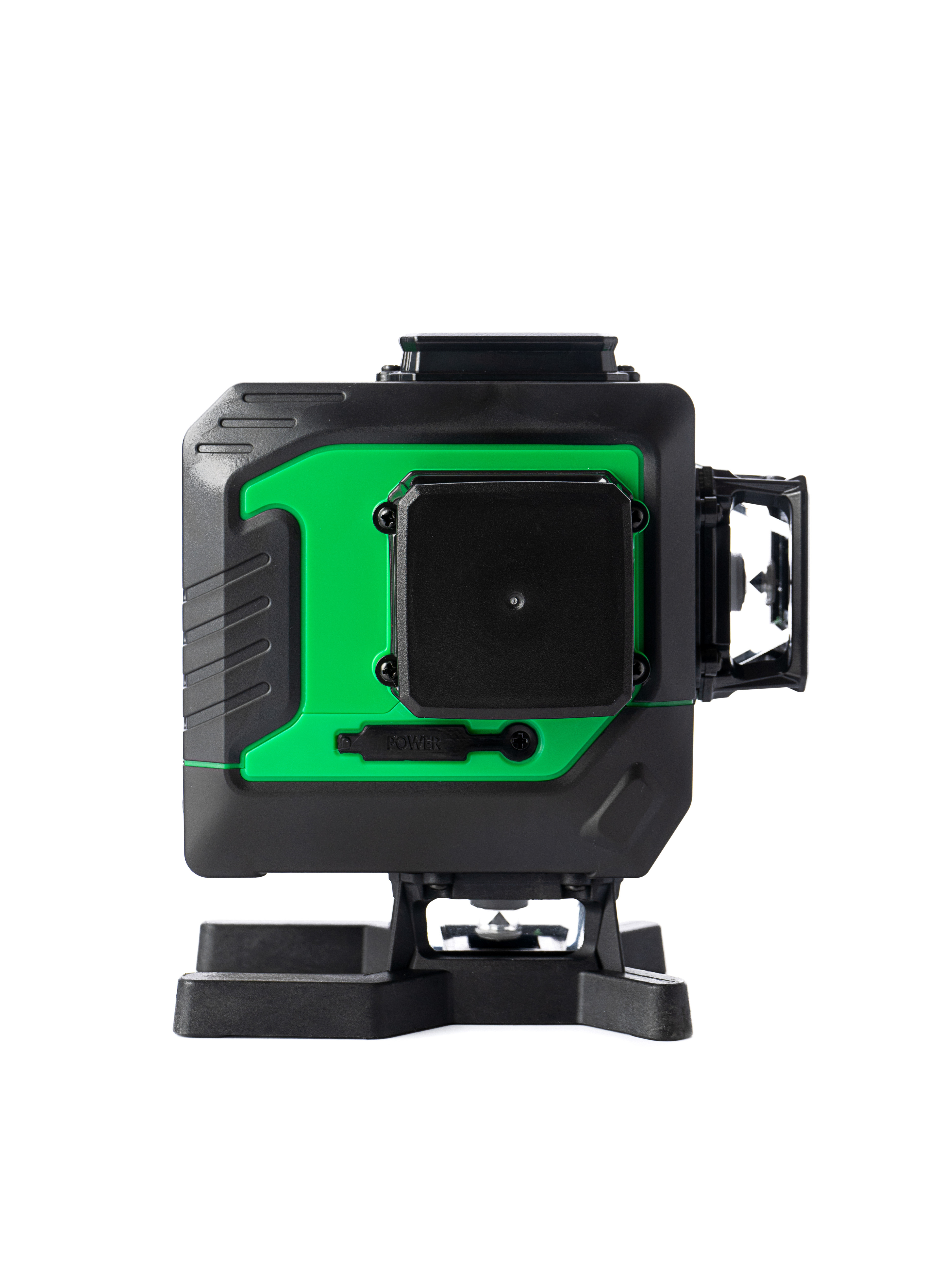

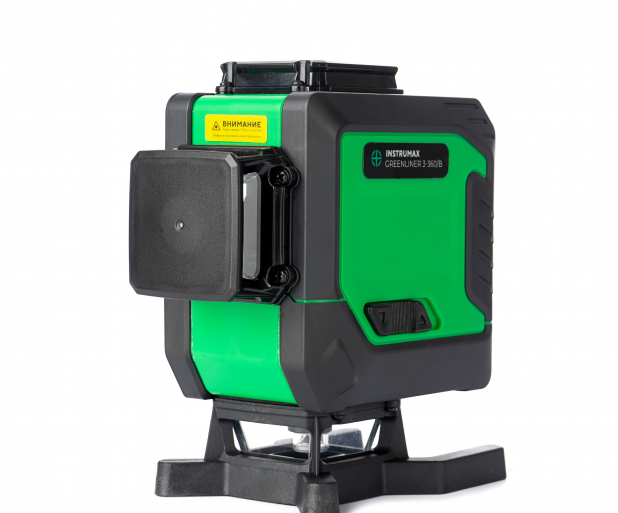

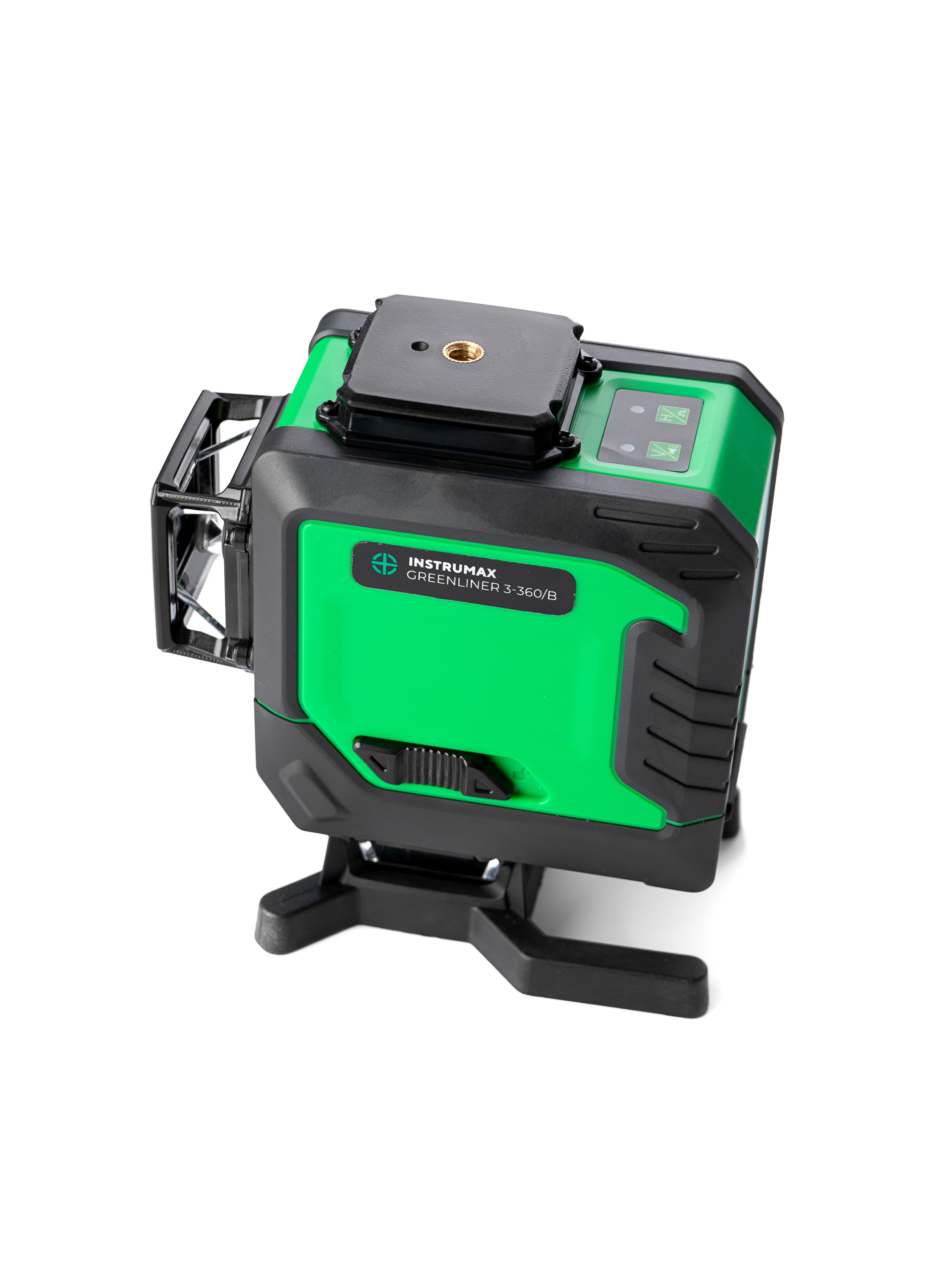

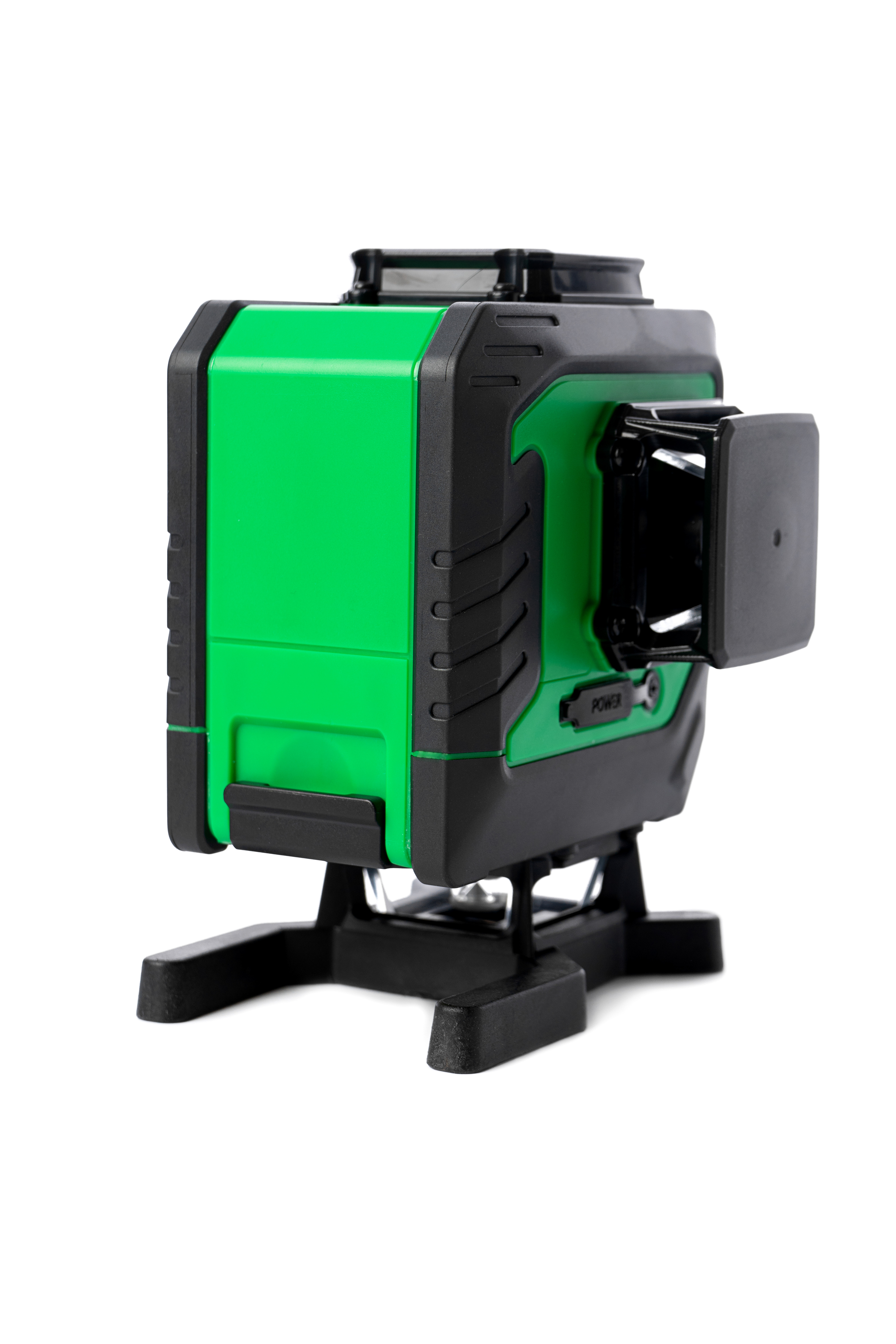

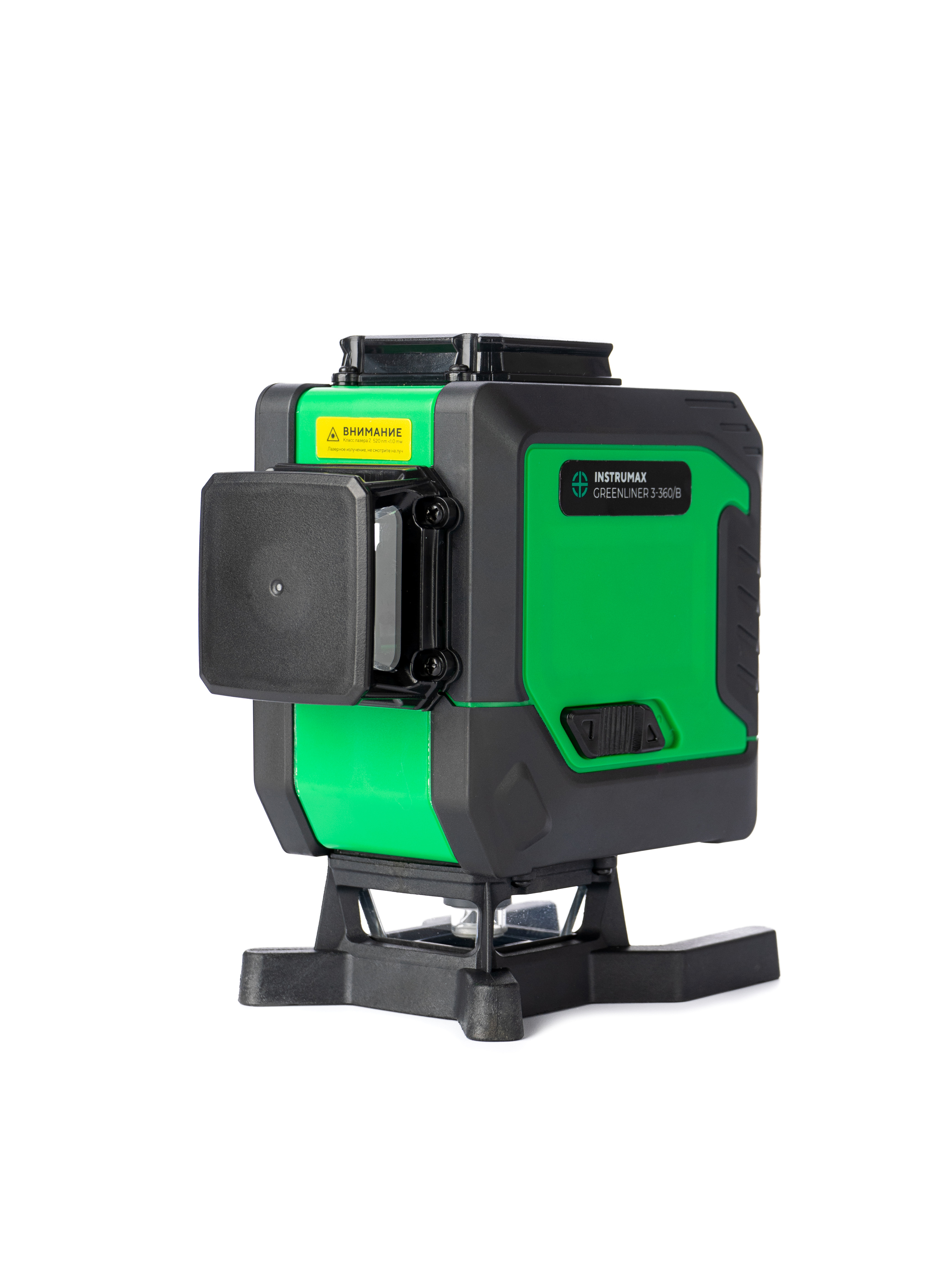

Line laser INSTRUMAX GREENLINER 3-360/B SET – line laser with three mutually perpendicular green laser lines. The main feature of INSTRUMAX GREENLINER 3-360/B is that the horizontal line is positioned as low as possible. To build closed lines (360°), a special emitter is used. Allows you to carry out absolutely any marking when carrying out construction or repair work outside and inside the premises.

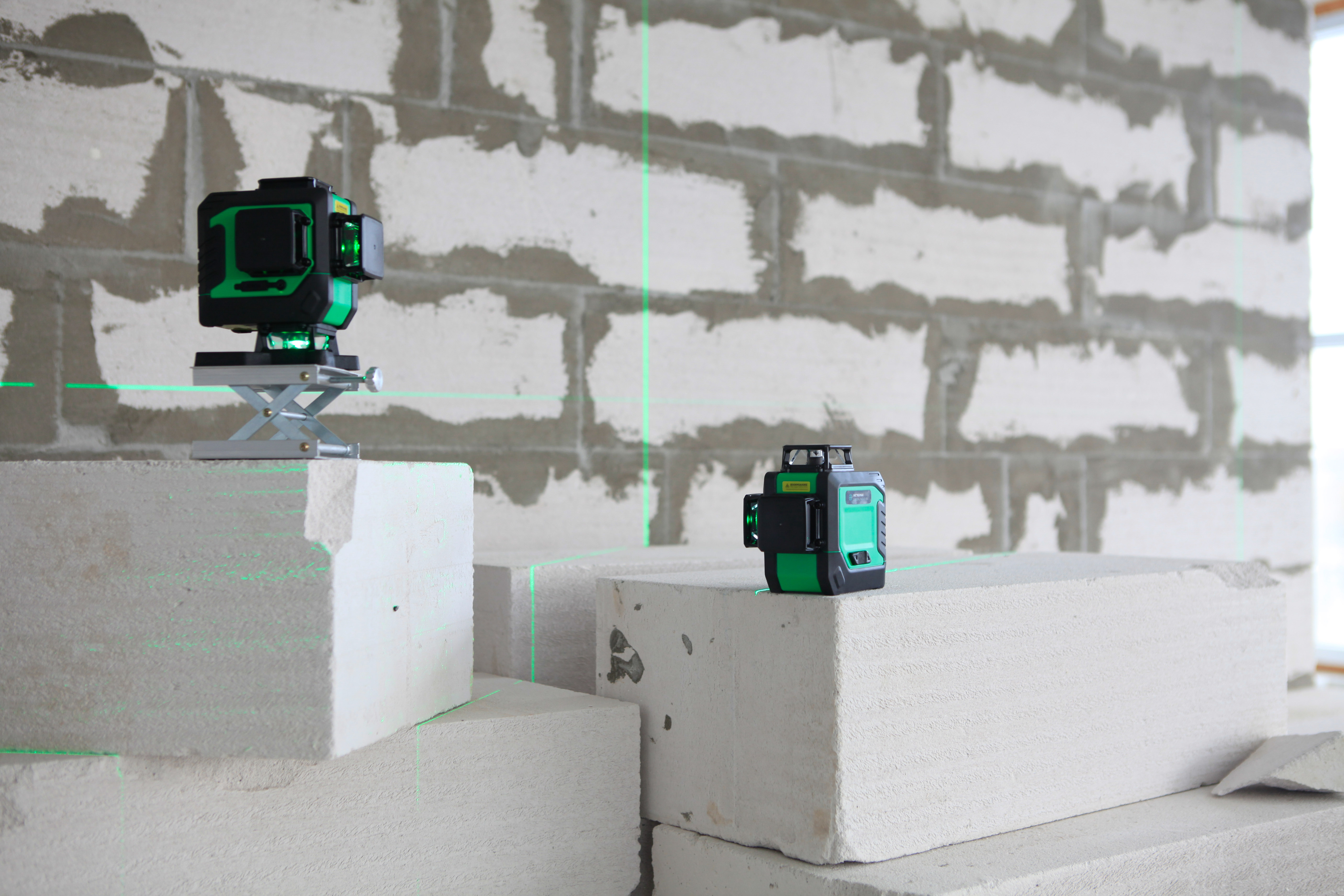

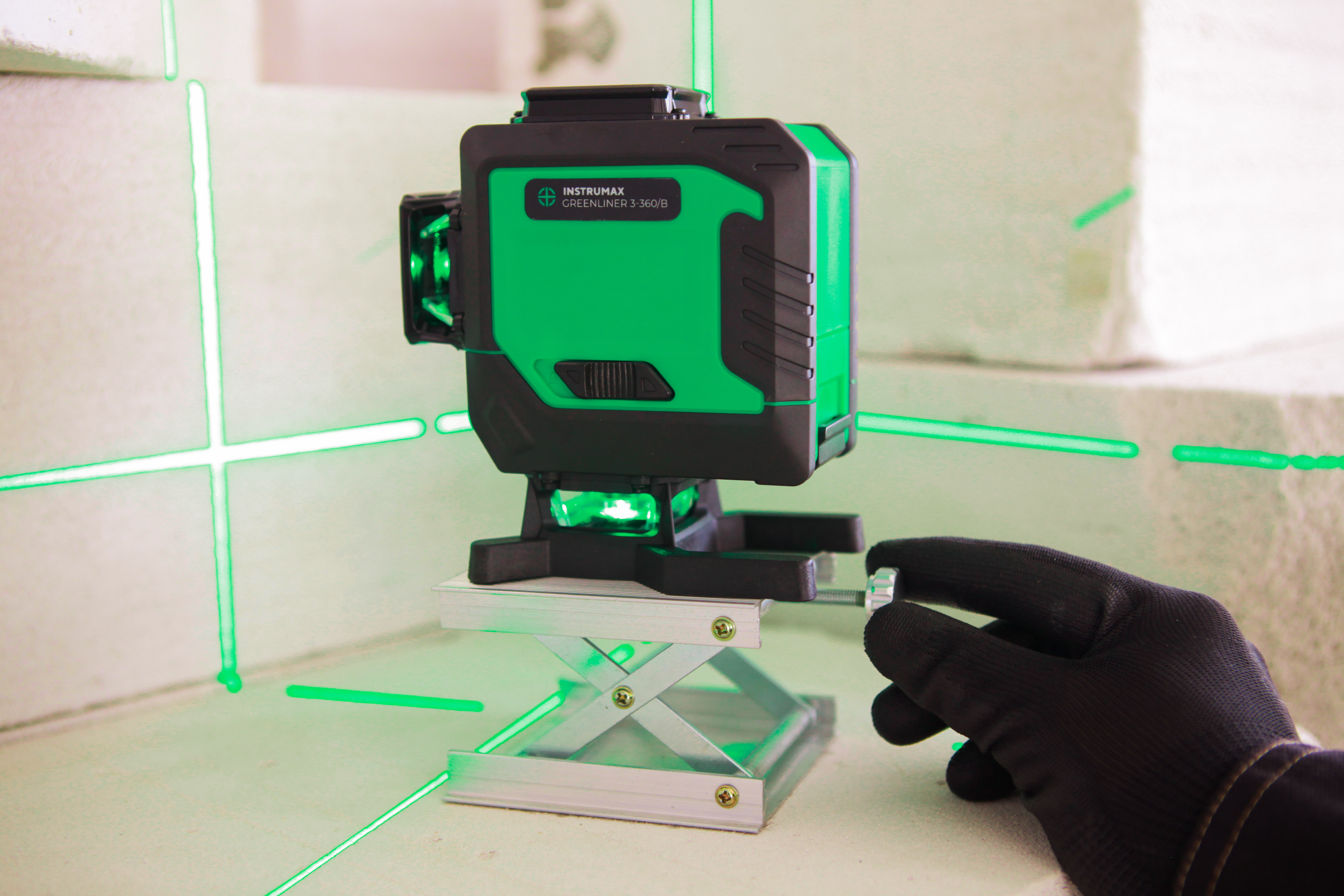

Convenient marking. The level projects three lines: one horizontal and two vertical. All lines have a 360° scan. The marking beam will be visible at any point. The horizontal line is positioned as low as possible: just a centimeter from the surface on which the laser level stands. When vertical lines are included, projections that intersect at right angles are obtained. Very convenient for aligning walls and corners between walls. Laser lines can be turned off one by one, leaving only what is needed for work.

Green laser beam. The uniqueness of INSTRUMAX GREENLINER 3-360/B in the green color of the laser beam. The green laser beam is much more visible than the red one under the same conditions.

Precise leveling and tilting. Level leveling is automatic when tilted no more than 4°. Tilt mode allows you to position the laser level at any angle. It is enough to turn off the sound alarm. This function may be needed, for example, when cladding an attic floor from the inside to lay all the cladding sheets in one plane.

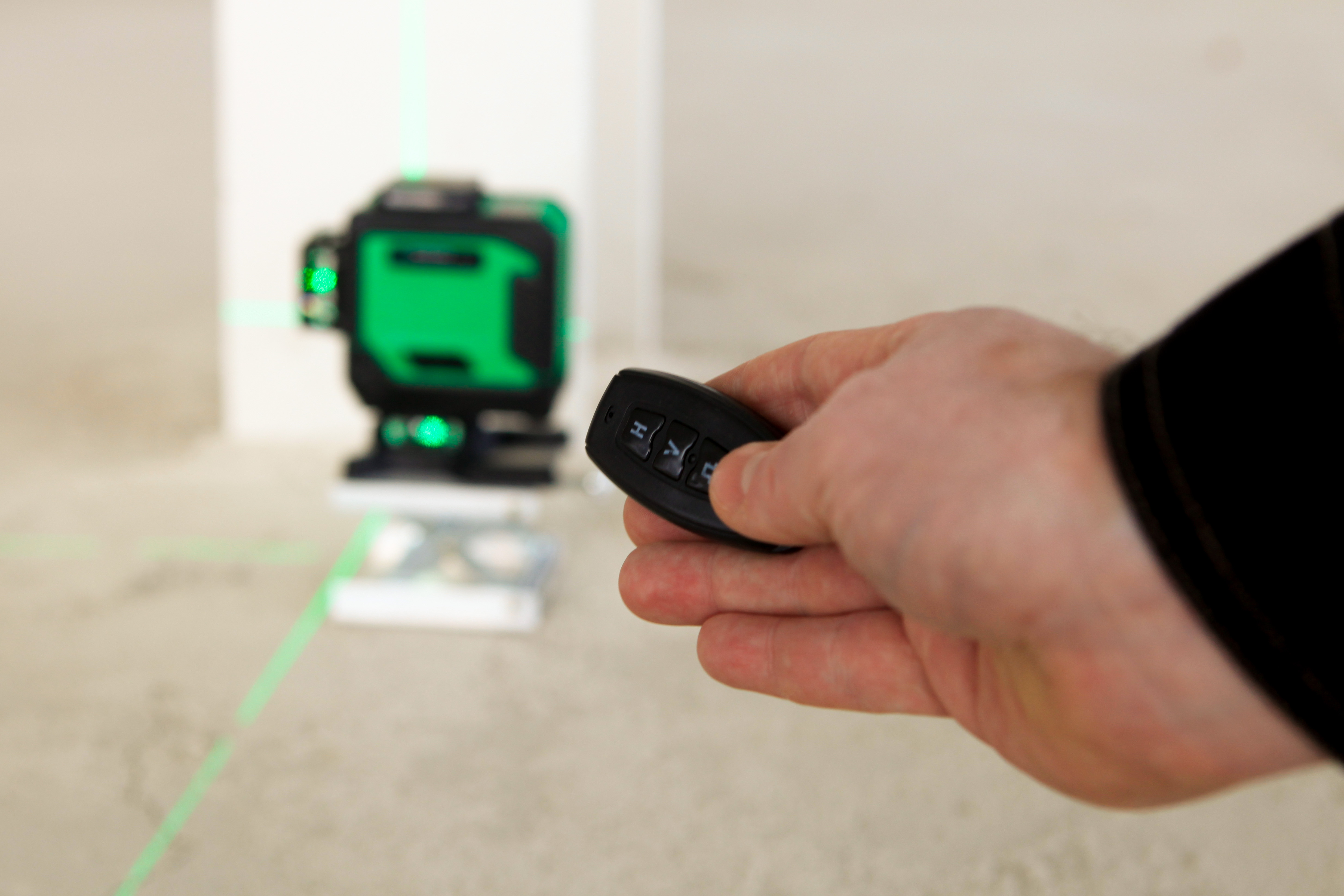

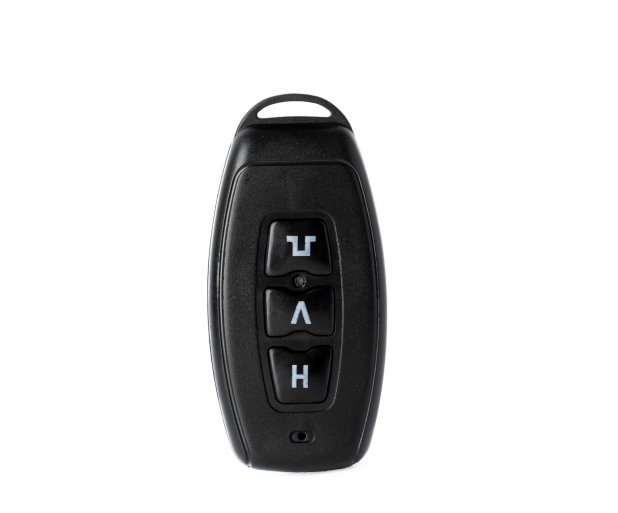

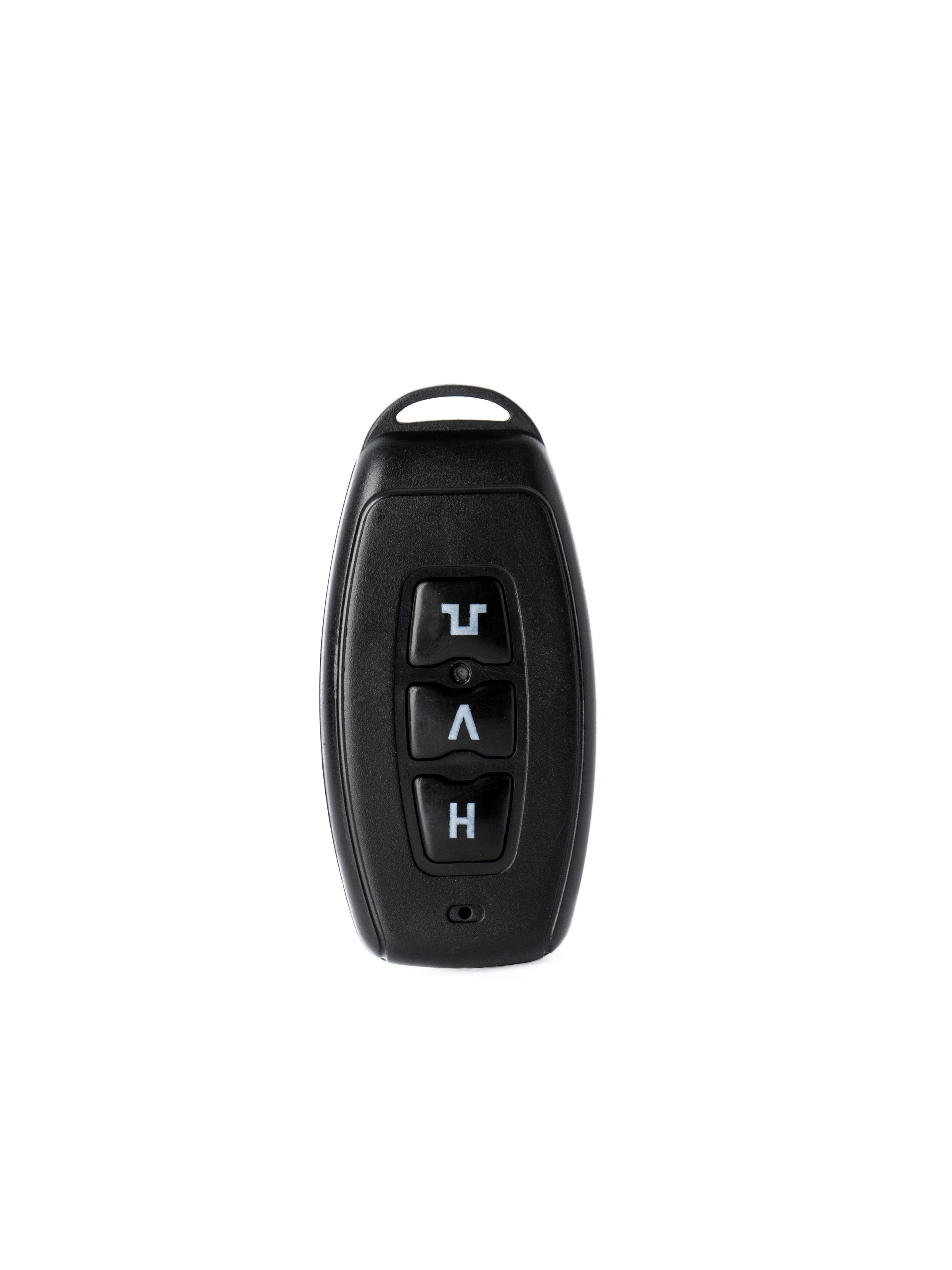

Remote control. Laser lines can be controlled using a remote control. Very convenient for selecting laser lines when it is difficult to access the buttons on the device or when maintaining a stationary state after installation.

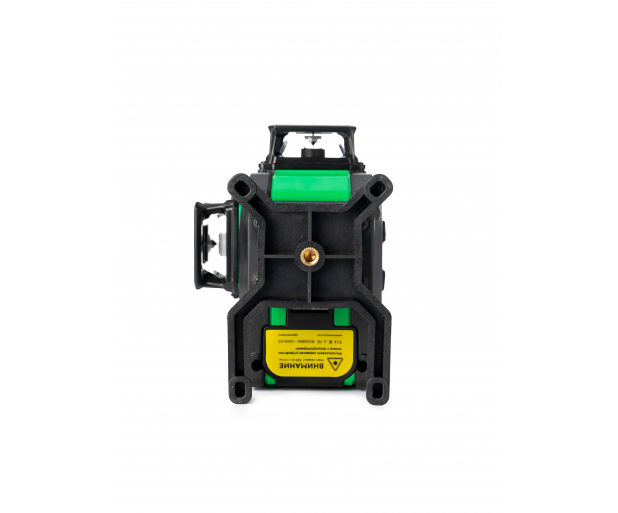

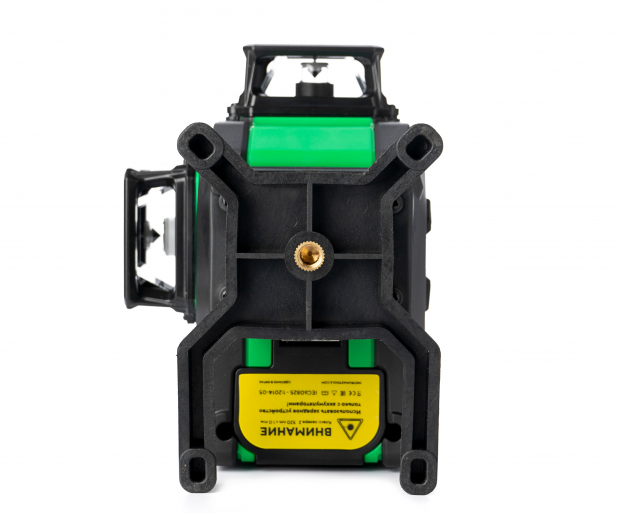

Convenient fastening. The INSTRUMAX GREENLINER 3-360/B can be mounted to a tripod using a 1/4" threaded connection.

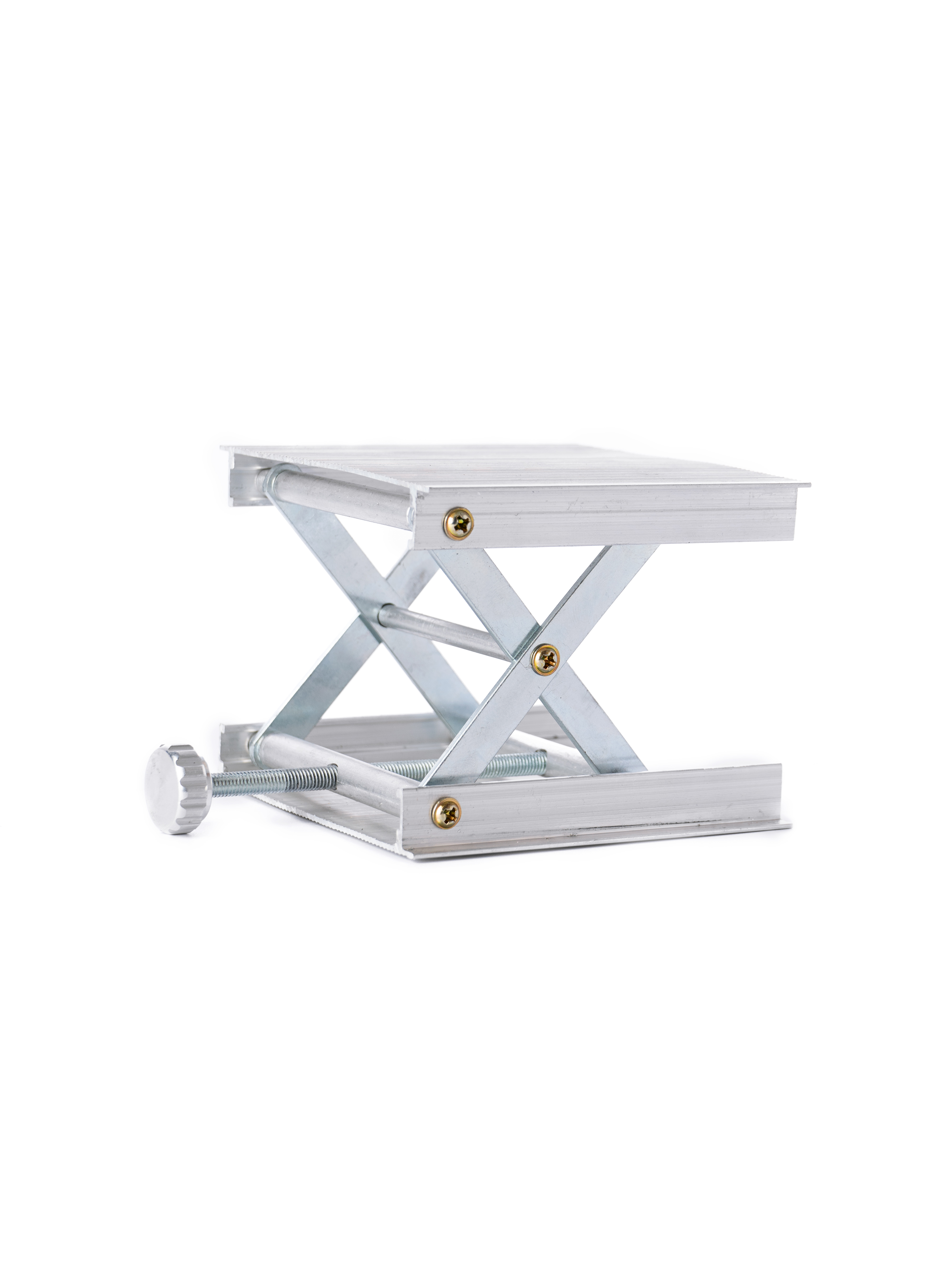

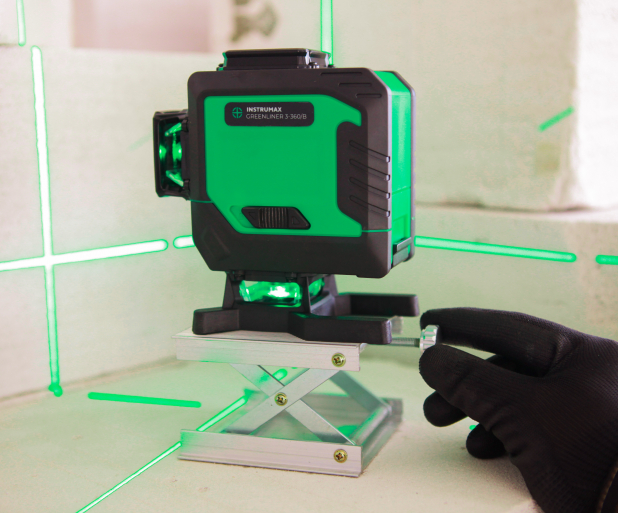

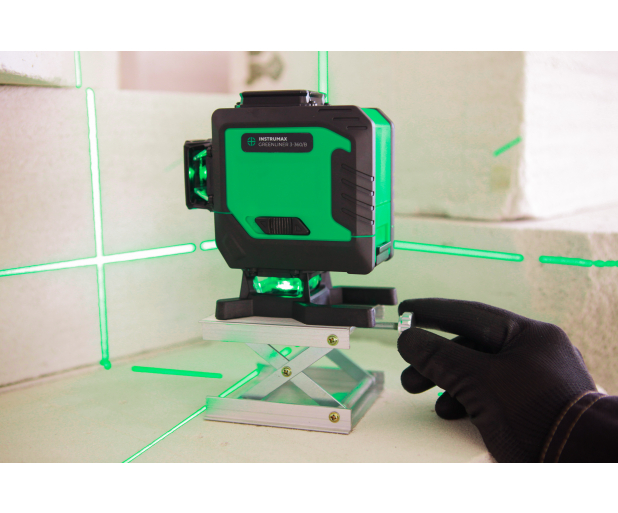

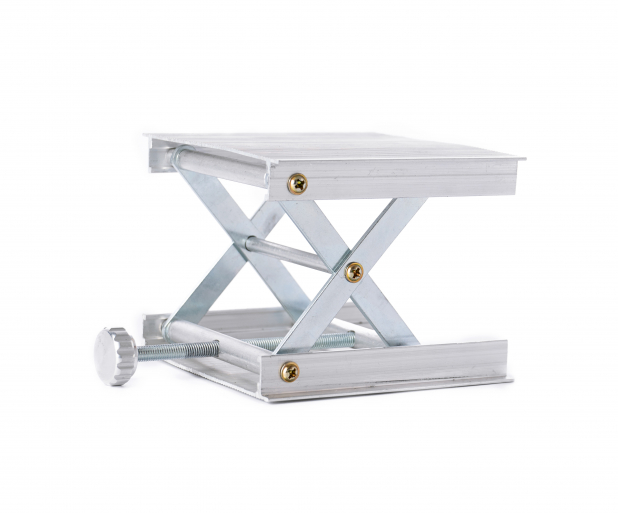

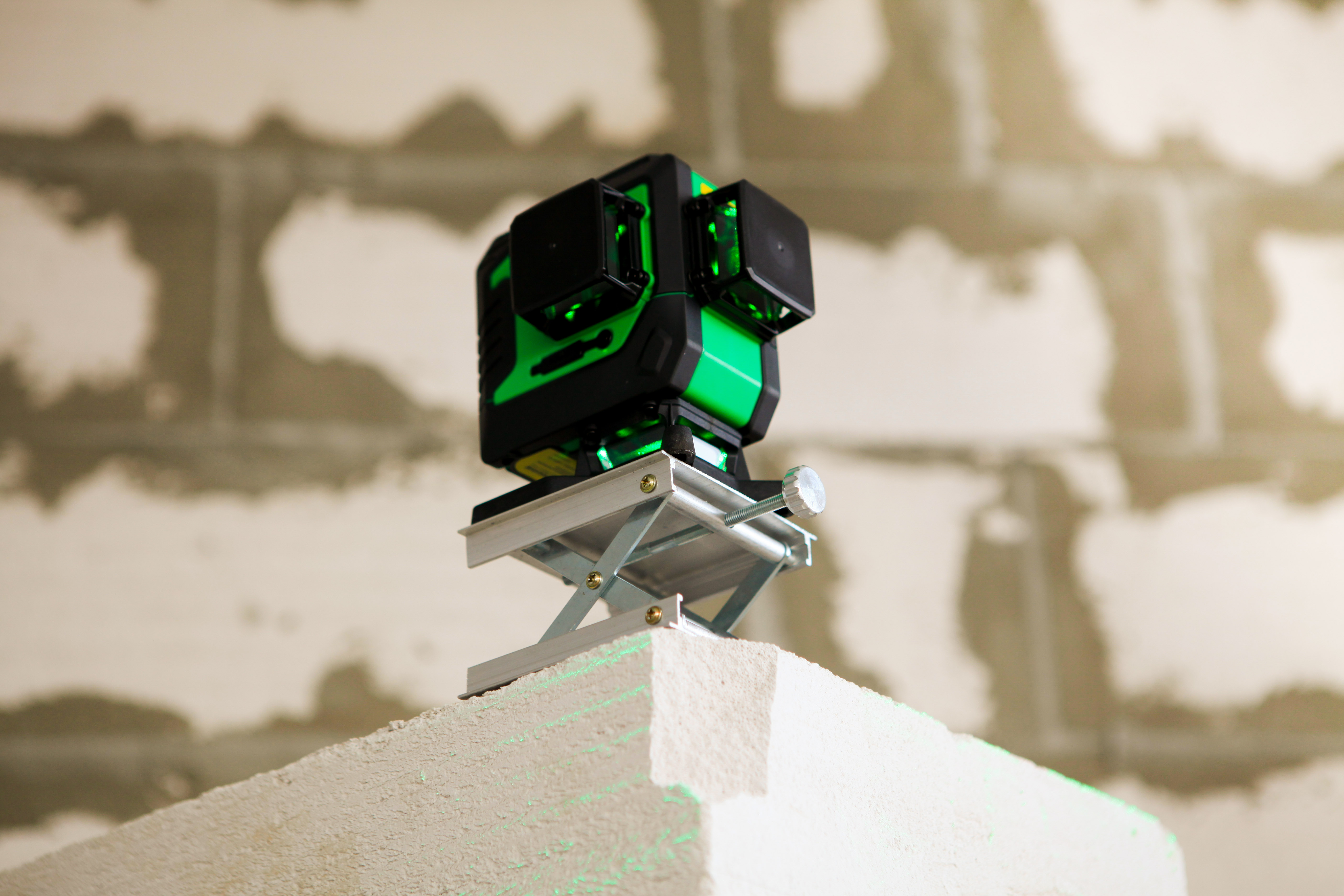

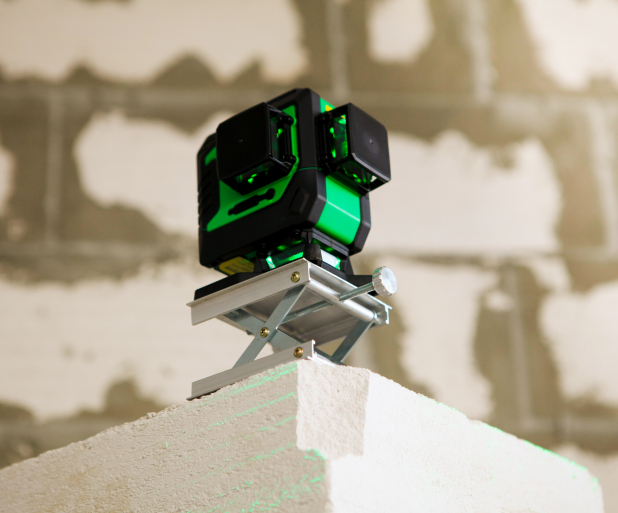

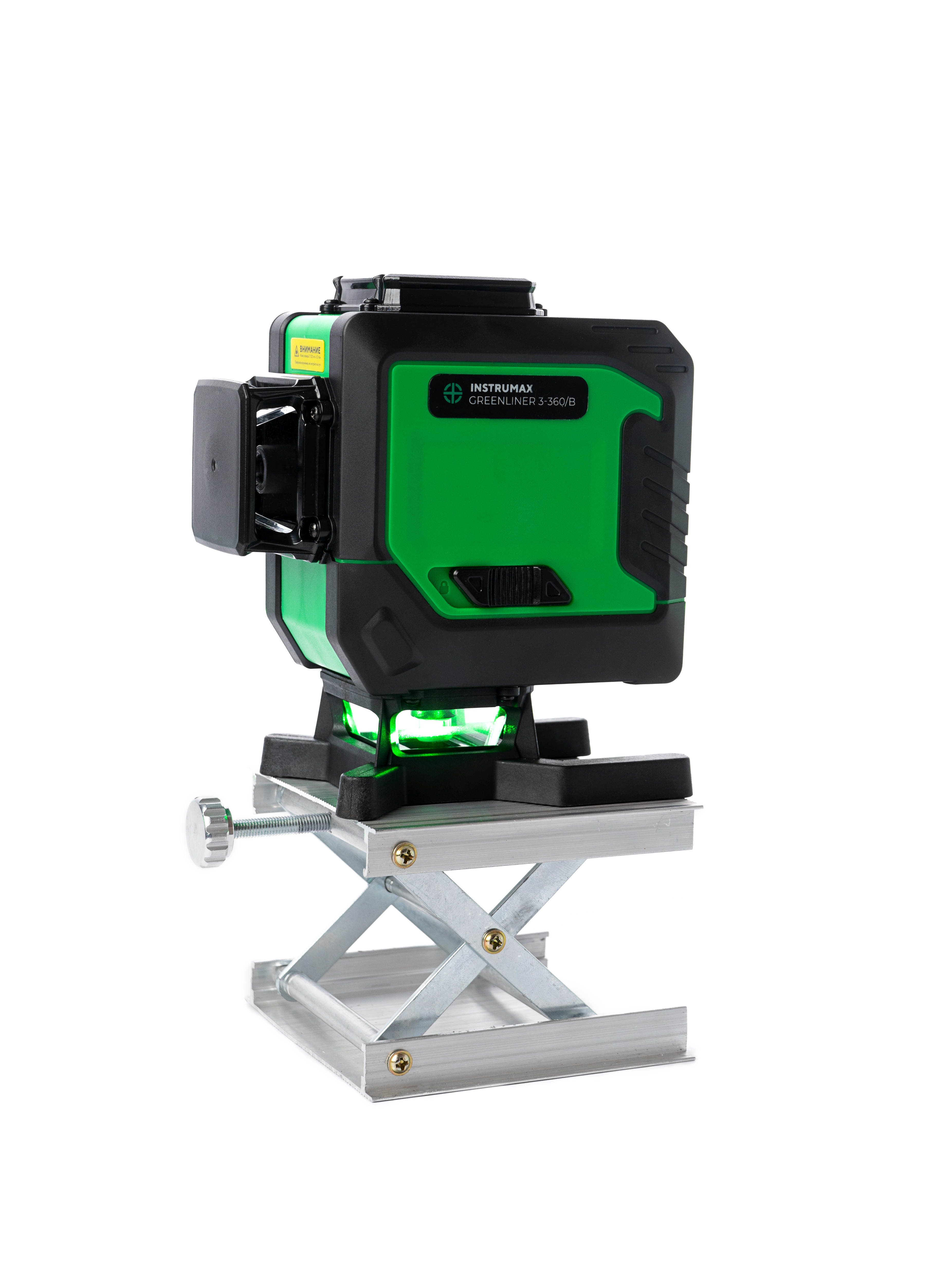

Adjustment of horizontal installation. The kit includes a metal lifting platform. With its help, you can very accurately adjust the installation height of the laser level from 2.5 to 9 cm.

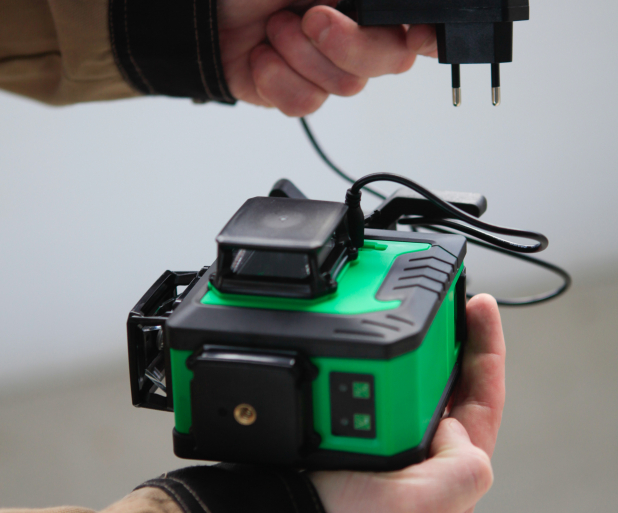

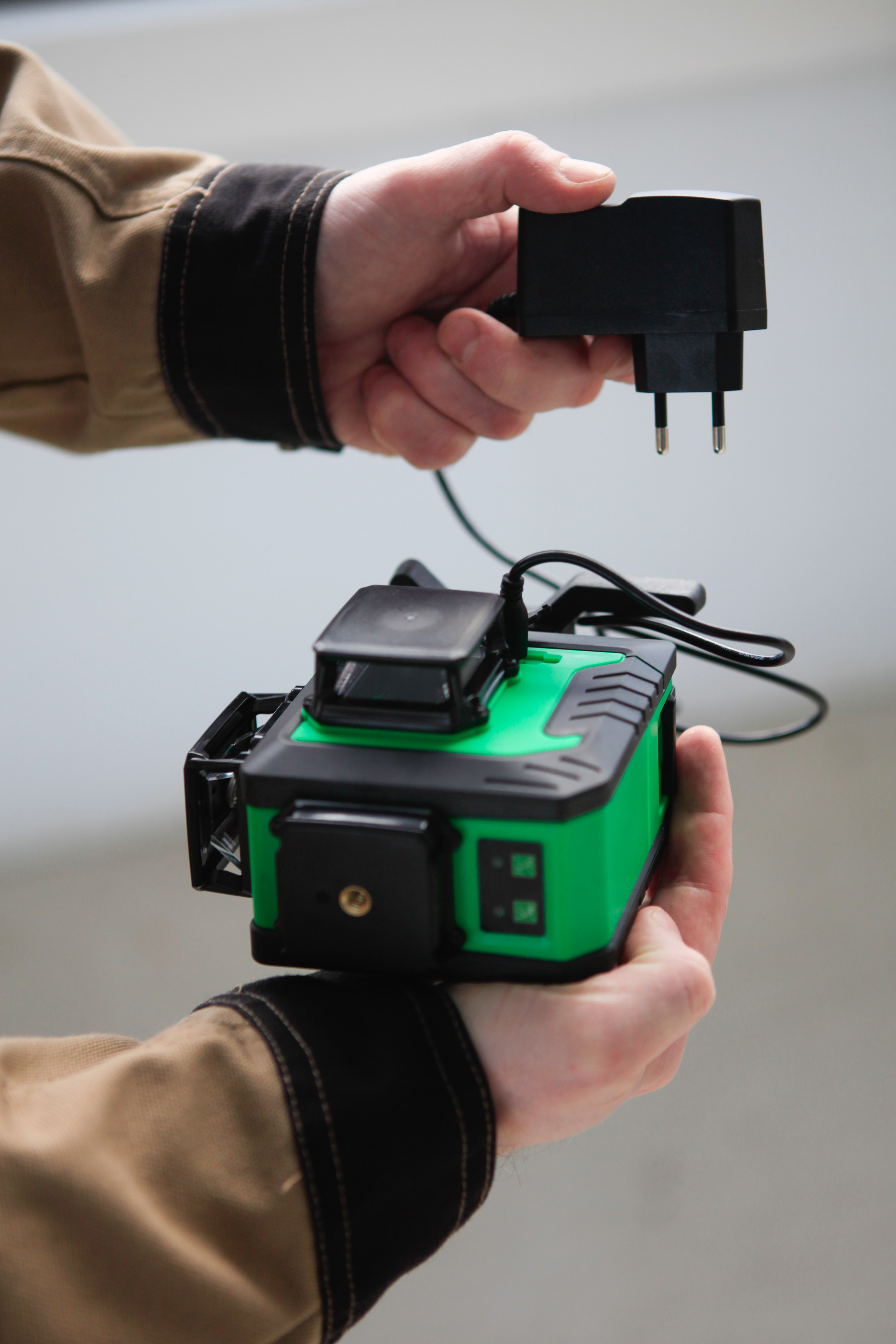

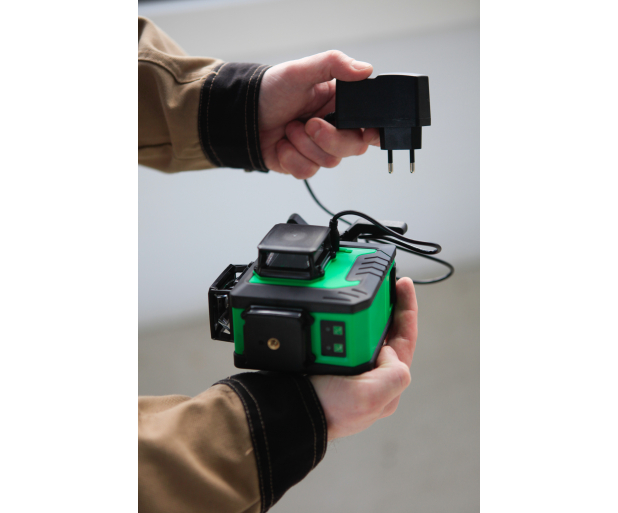

Works from a charger. INSTRUMAX GREENLINER 3-360/B can operate from a charger connected to a household network.

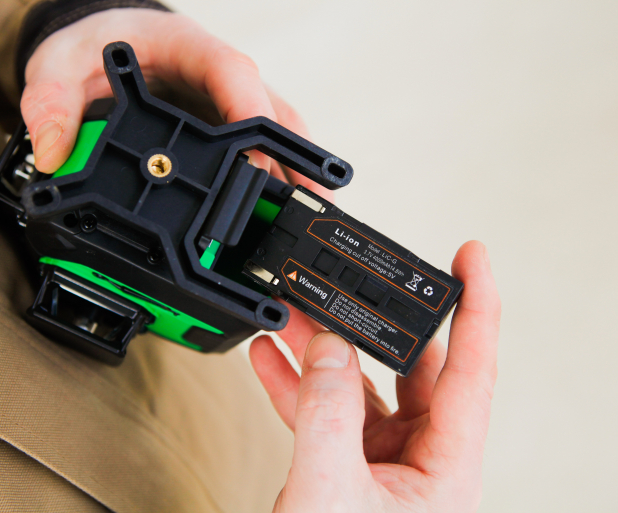

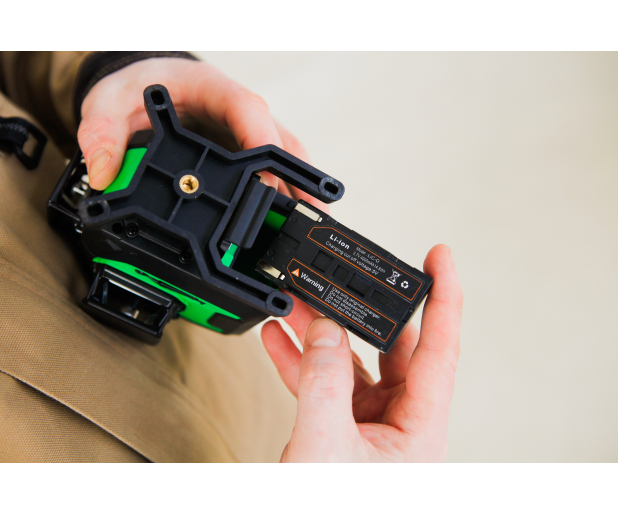

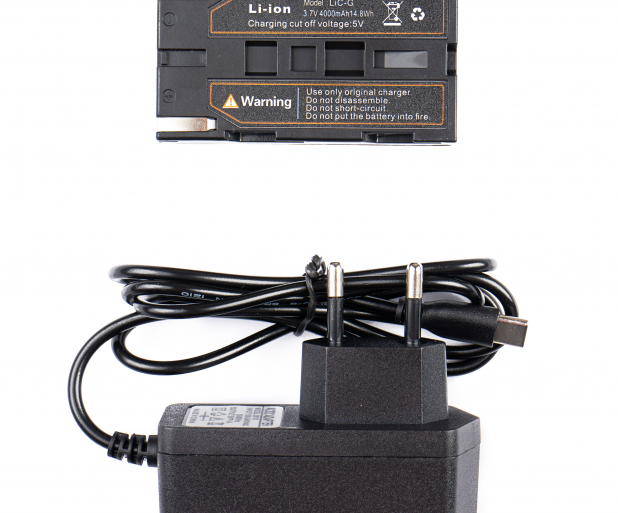

Lithium battery. The laser level is powered by a lithium battery. You can charge it directly in the device using a charger or separately.

Receiver operation mode. For working in bright light, outdoors, there is a mode for working with the receiver. When this mode is turned on, the marking distance increases from 40 to 70 meters.

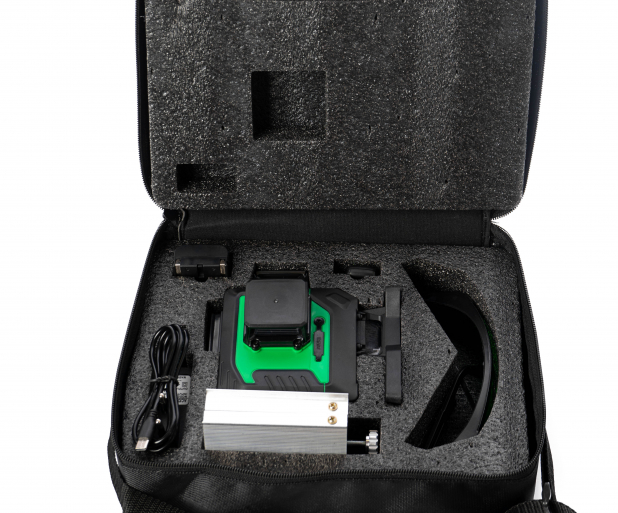

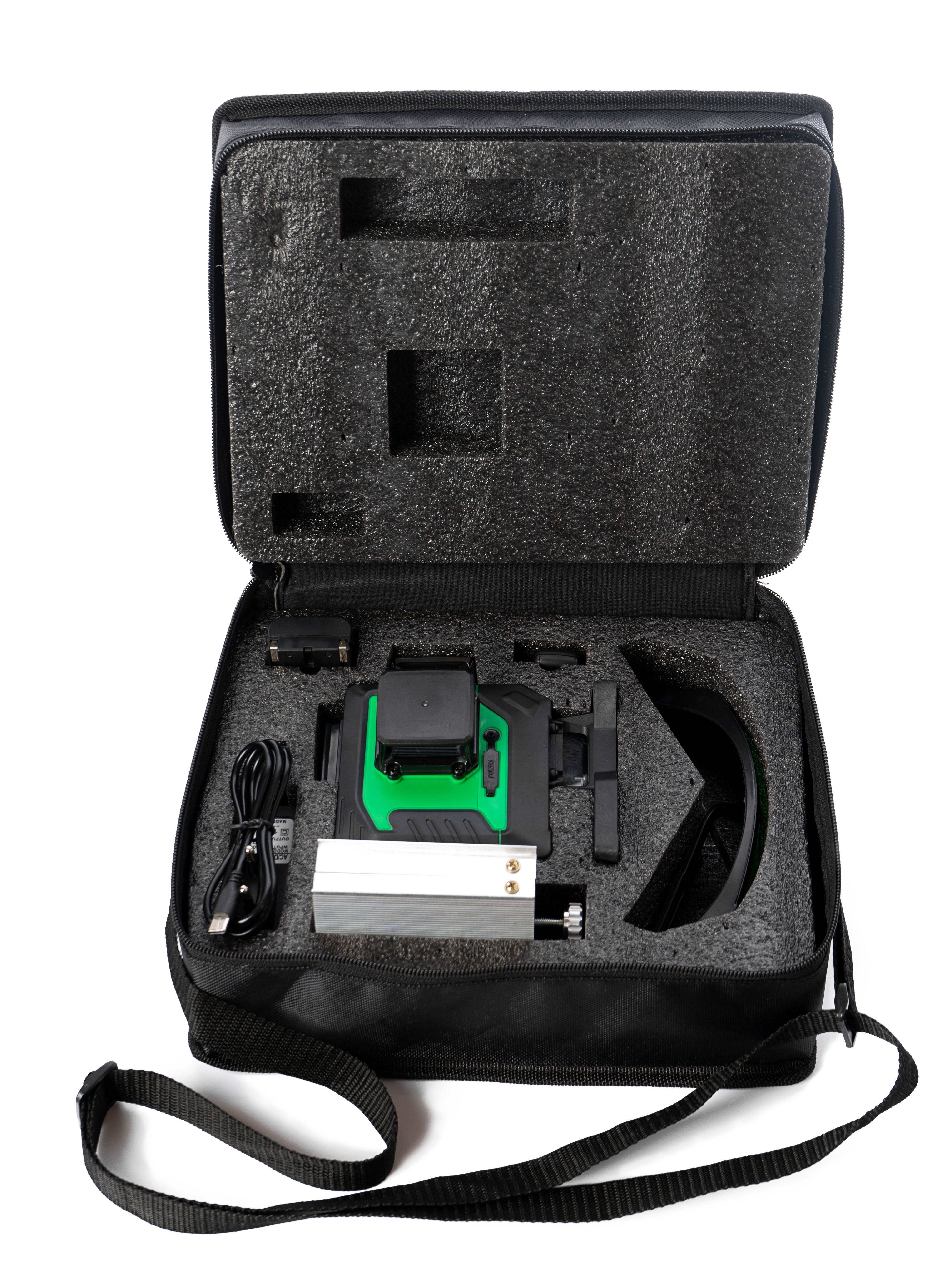

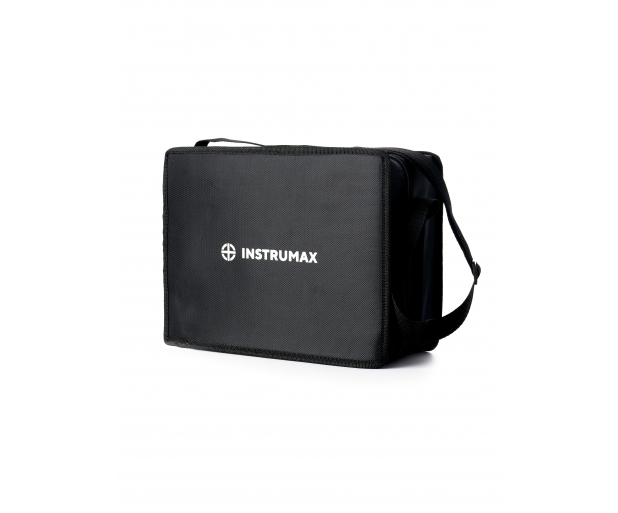

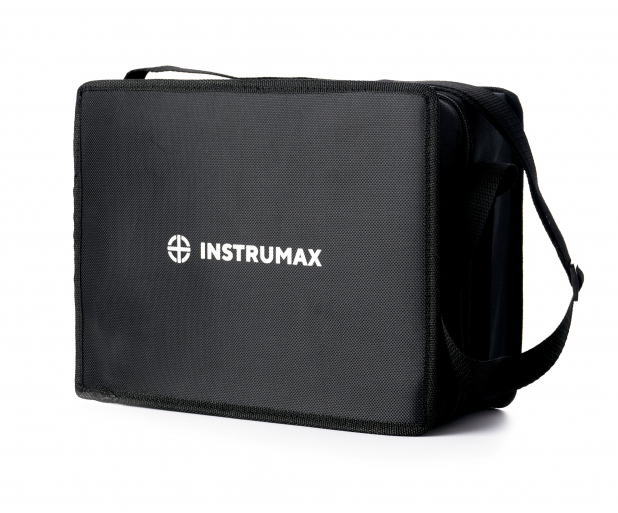

Transport case. For storage and transportation of the laser level and accessories, the entire set is placed in a transport case. There is a special place for each element in the case.

INSTRUMAX GREENLINER 3-360/B SET is an excellent choice for marking work. Leveling surfaces, laying electrical wiring, installing doors and windows, marking plasterboard structures and suspended ceilings, building walls and partitions, and exterior finishing work will be done quickly and efficiently.
