Telescopic tripod INSTRUMAX TR-120

Tech specification

  • Material Aluminum
  • Height, cm 120
  • Thread, inch 1/4" 5/8"
  • Quick fastening system v
  • Weight, kg0.57

Complectation

  • tripod
  • case
  • adapter from 5/8" to 1/4" thread
  • box

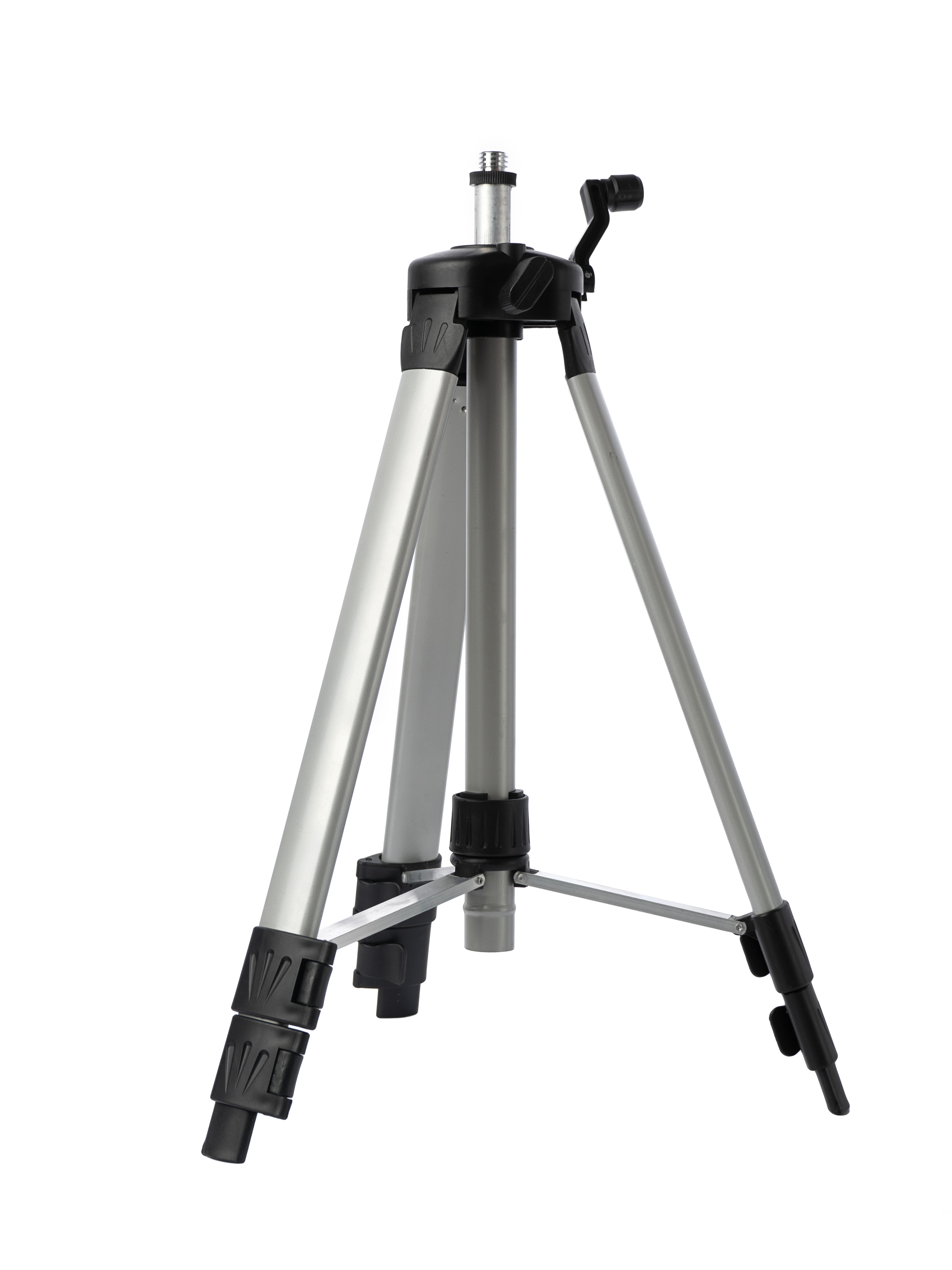

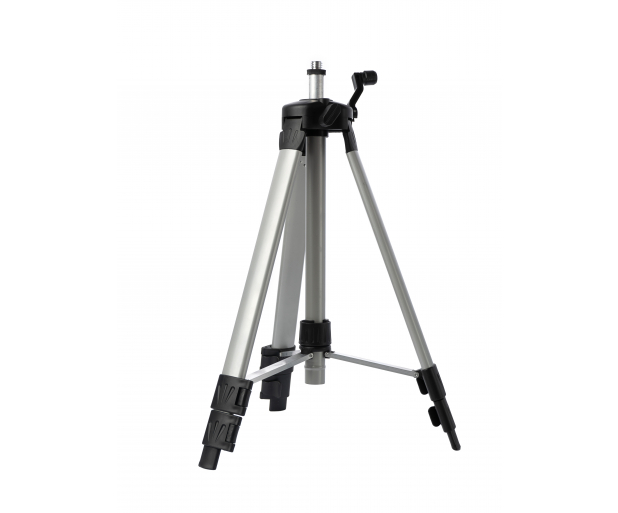

Telescopic tripod for laser levels INSTRUMAX TR-120 is a stable classic tripod with a retractable part (column) for laser levels.

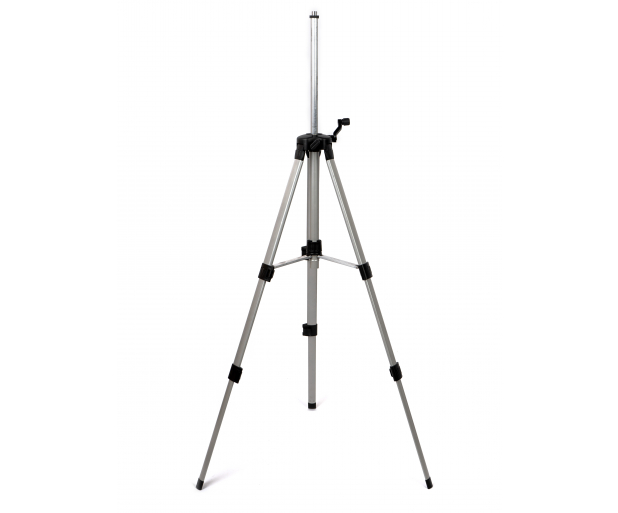

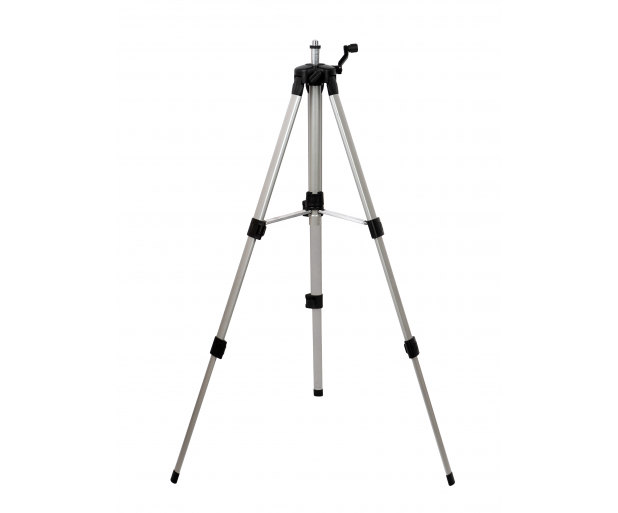

Maximum tripod height 120 cm. Minimum height 42 cm.

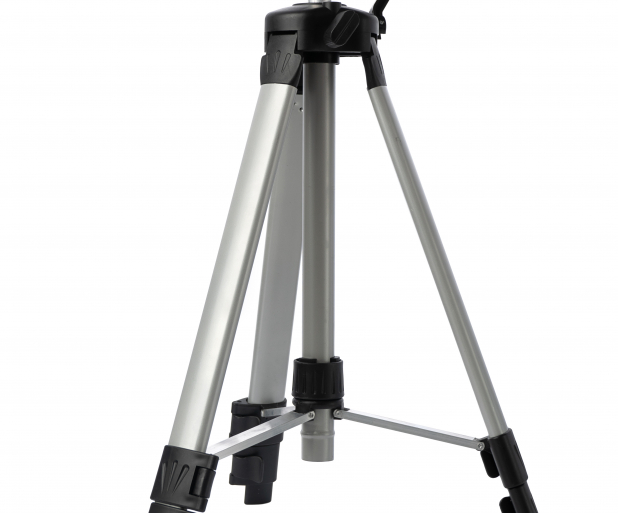

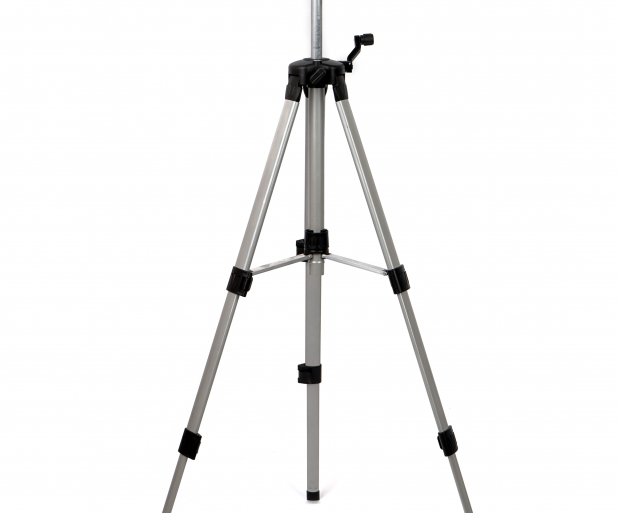

Lifting column. The column is equipped with a rack and pinion mechanism for smooth lifting up to 38 cm.

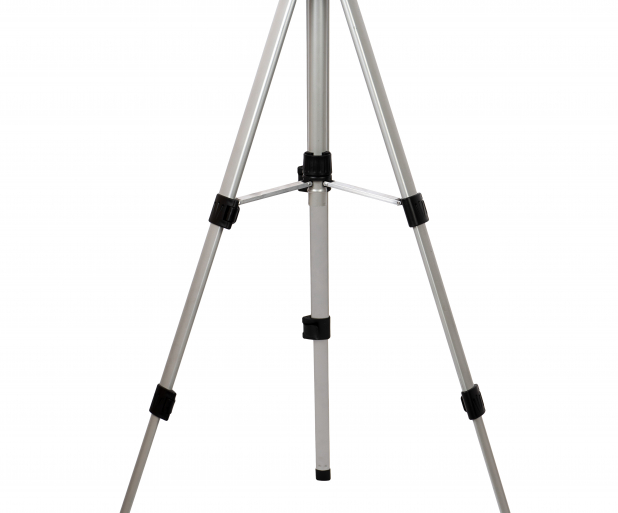

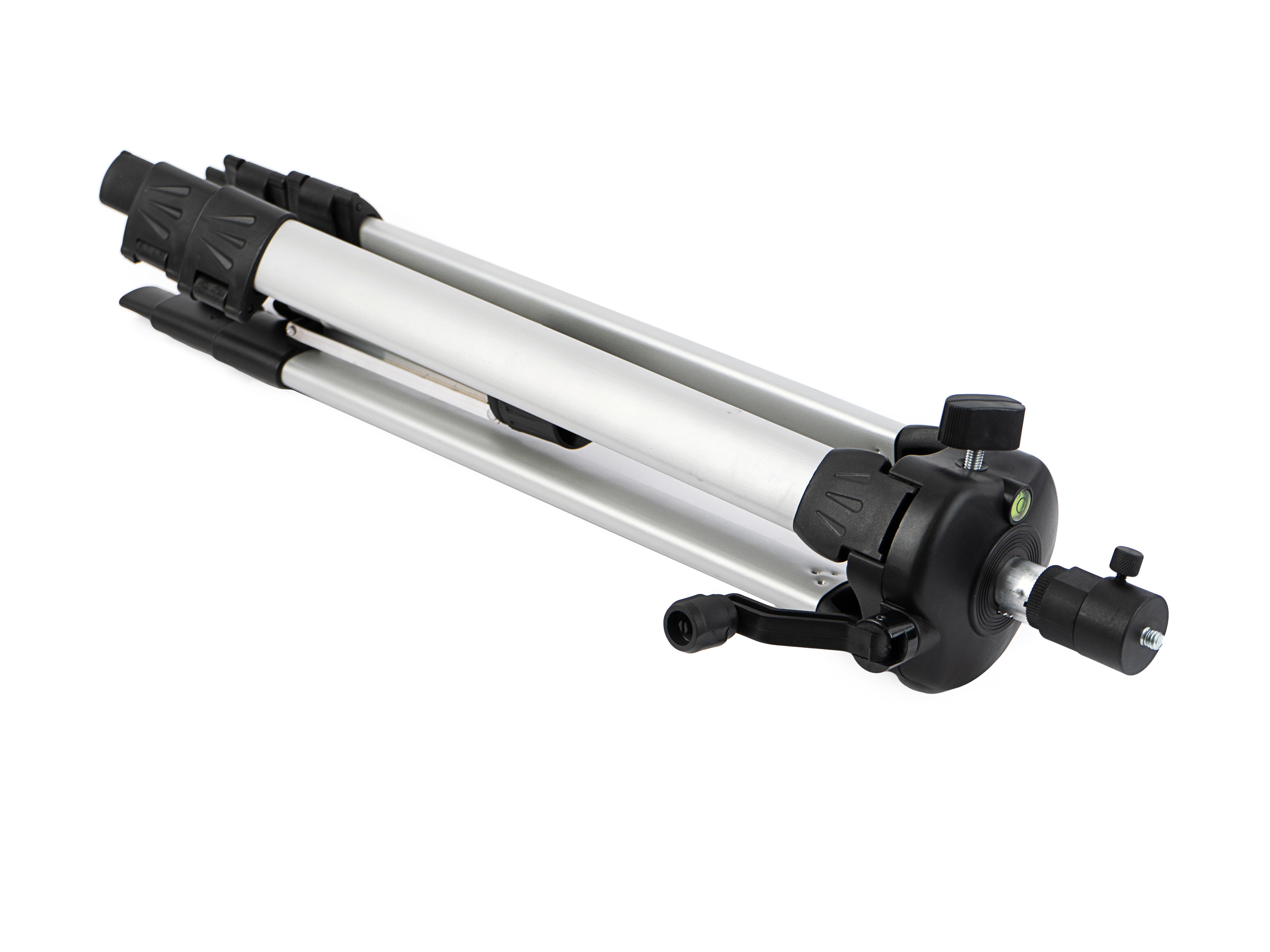

Fixation of telescopic legs with clips. The legs consist of three sections. By extending them to the desired length, you can adjust the height of the tripod.

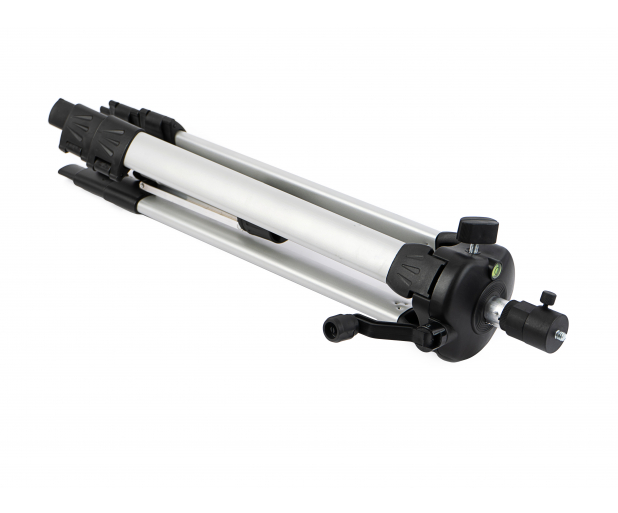

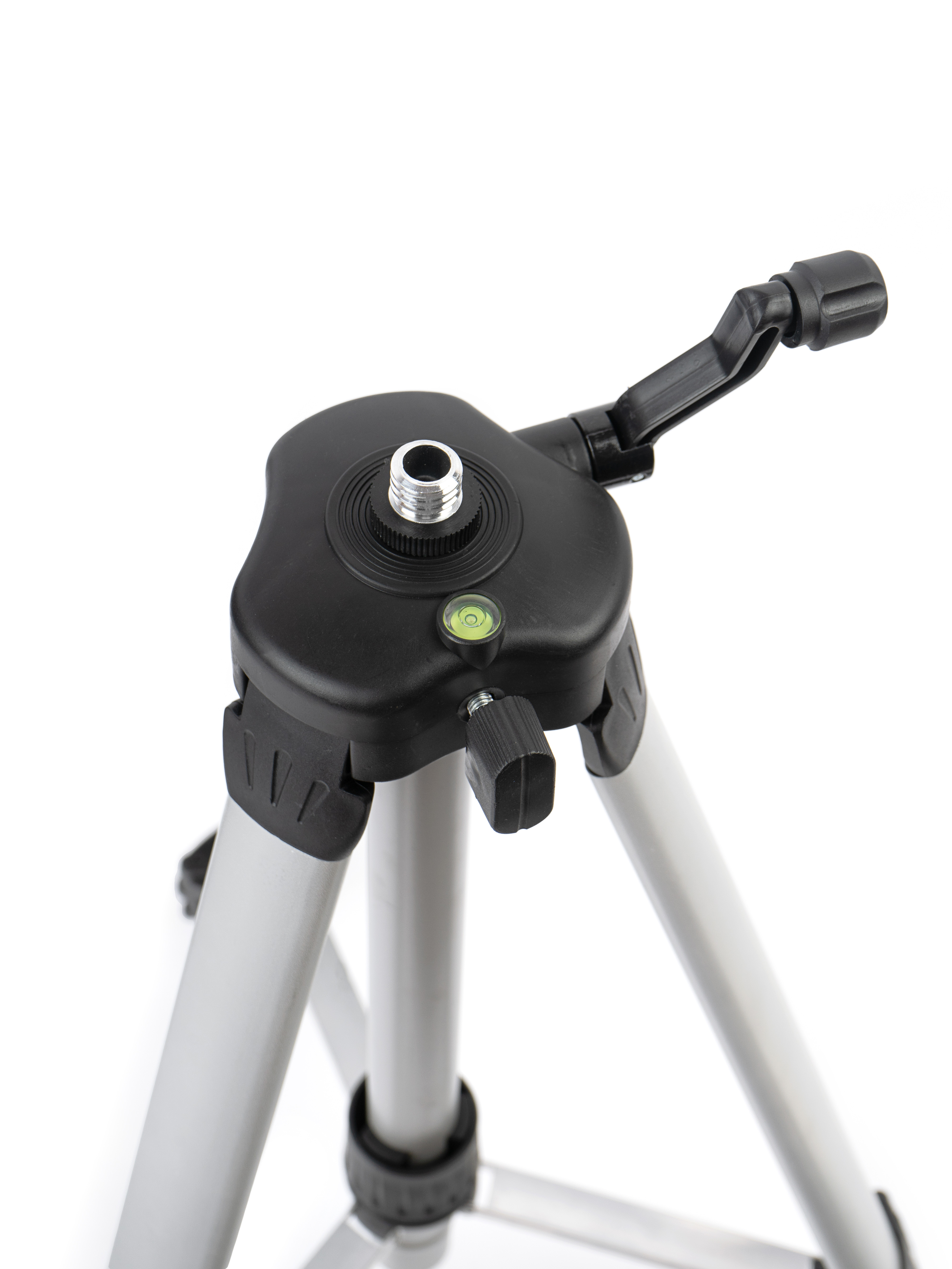

Built-in bubble level. You can control the uniformity of installation using the built-in bubble level.

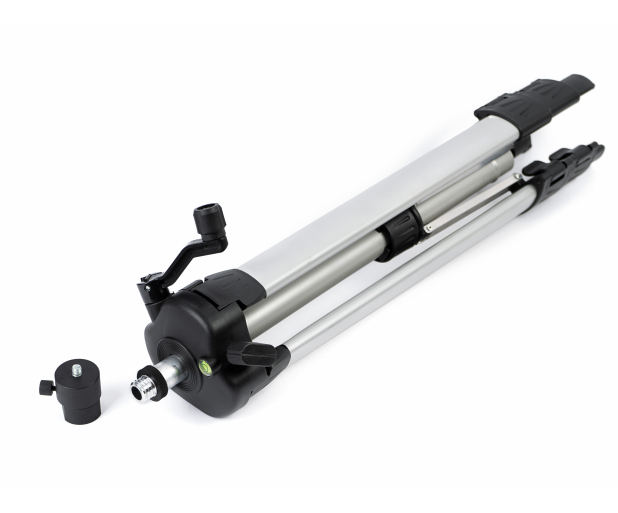

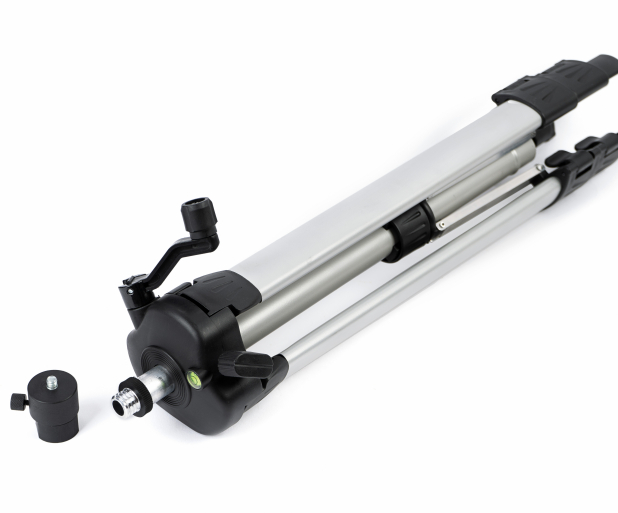

Tripod mount with 5/8" thread. The kit includes a 5/8" to 1/4" adapter for mounting the laser level on a tripod.

The tripod comes with a carrying case.
