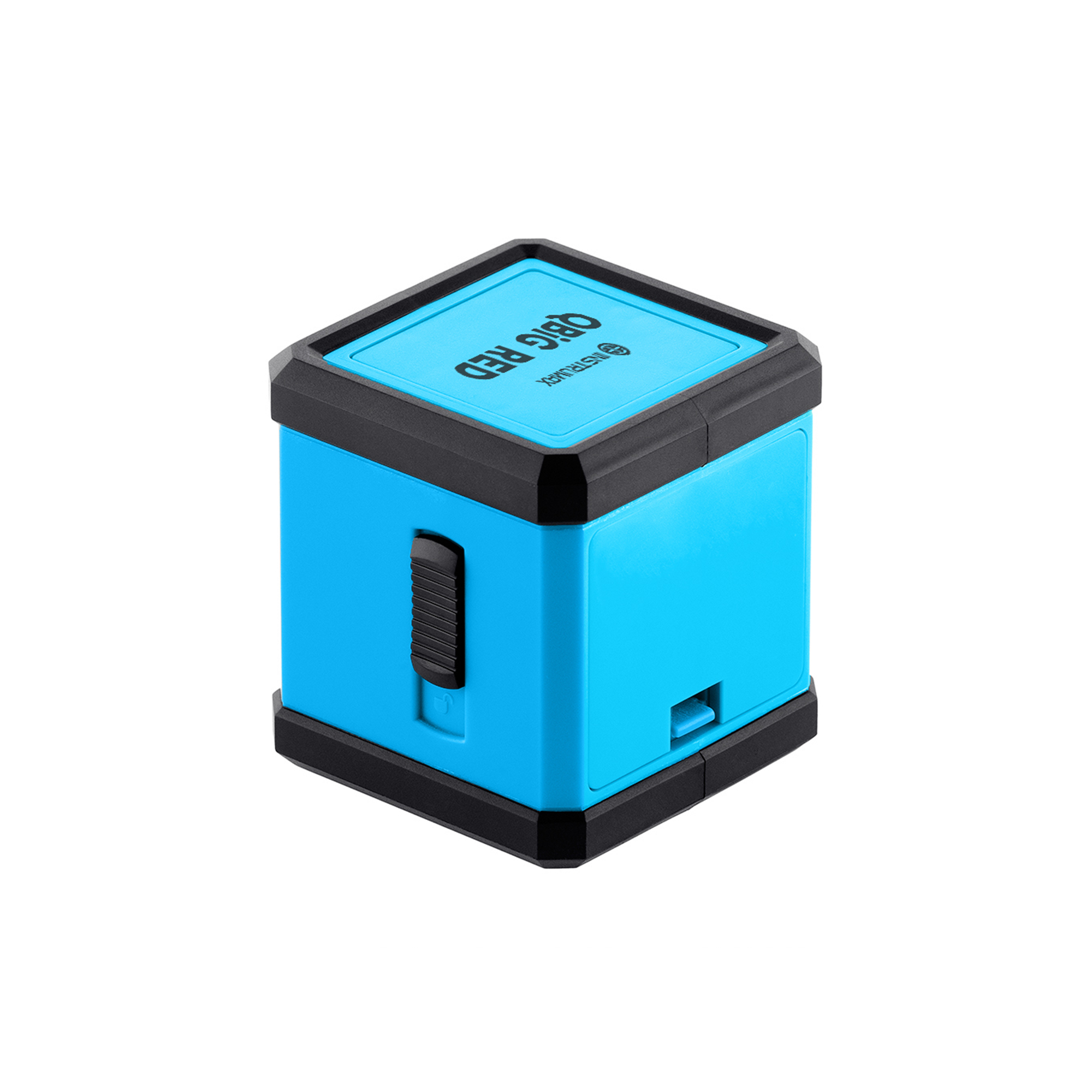

Laser level INSTRUMAX QBIG RED

Tech specification

  • Accuracy ±0,2 mm/m
  • Self-leveling range ±4°
  • Fan angle of the horizontal beam 110°
  • Fan angle of the vertical beams 110°
  • Dust/water protection IP54
  • Laser color red
  • Laser class 2
  • Batteries, pcs 3
  • Battery, type AАА
  • Working range 10 m
  • Thread 1/4”

Complectation

  • Laser level
  • Batteries
  • Manual

Line laser Instrumax QBiG RED is a compact line laser. It’s designed for indoor applications. Instrumax QBiG RED projects one vertical and one horizontal lines, intersecting at right angle.

Working range. Working rang is up to 10m.A laser beam allows you to operate without special laser glasses.

Compensator lock. Self-leveling is equipped with the lock for prevention against damages during transportation. Maximum deviation of the slope angle mustn’t exceed 4°. Laser lines begin to flash when the deviation is out of self-leveling range. Such alarm protects the tool from errors.

Line laser Instrumax QBiG RED is a great choice for repair work.
