Tech specification

  • Accuracy ±0,2 mm/m
  • Self-leveling range ±4°
  • Fan angle of the horizontal beam 110°
  • Fan angle of the vertical beams 110°
  • Dust/water protection IP54
  • Laser color green
  • Laser class 2
  • Batteries, pcs 3
  • Battery, type AАА
  • Working range 20 m
  • Thread 1/4”


  • Laser level
  • Batteries
  • Aluminium tripod
  • Manual

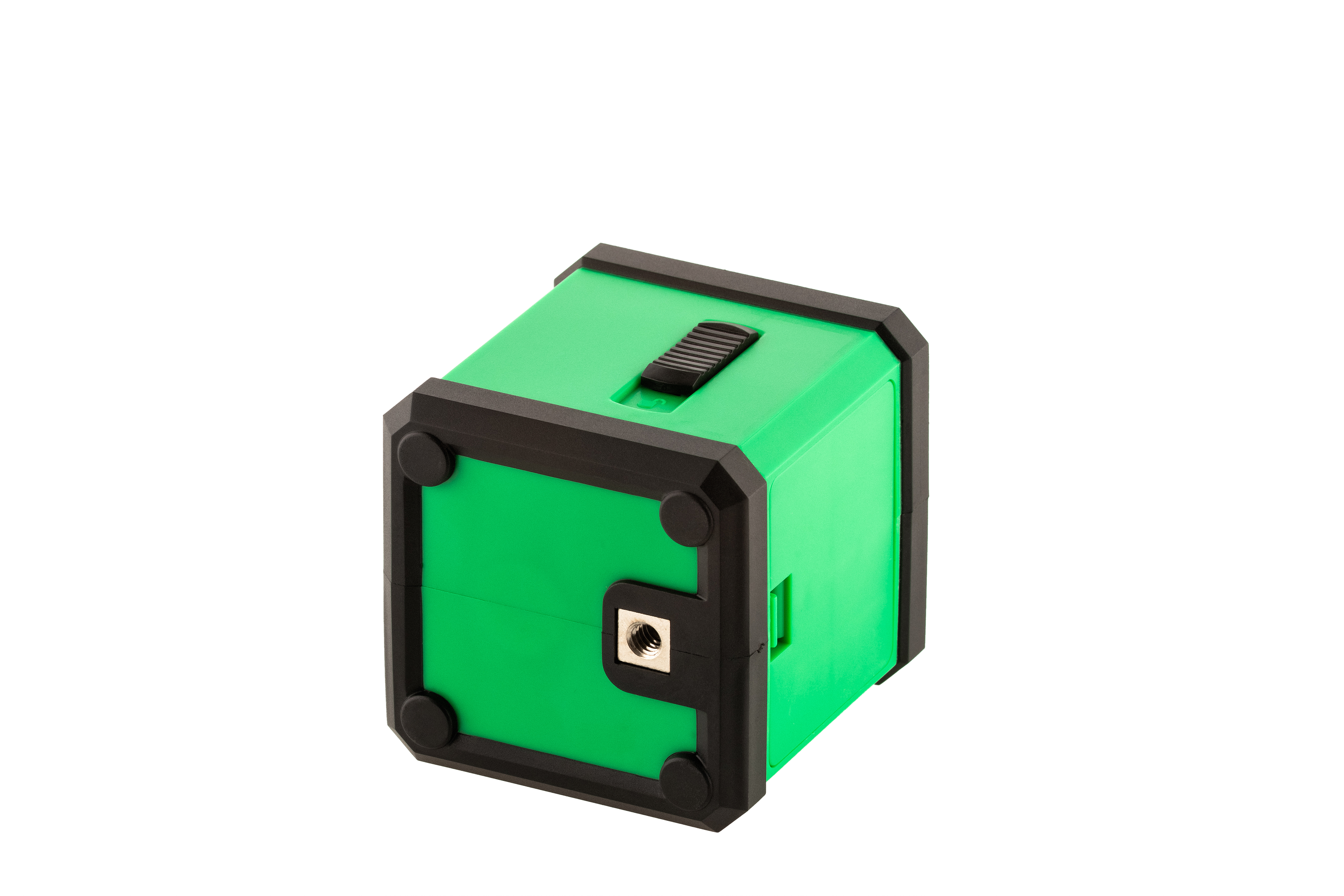

Line laser Instrumax QBiG SET is a compact line laser with a bright green beam. It’s designed for indoor applications. Instrumax QBiG SET projects one vertical and one horizontal lines, intersecting at right angle.
Instrumax QBiG is distinguished by its green laser beam. Green laser beam is much better visible than red under the same conditions.

Working range. Working rang is up to 20m. It allows you to use it in large areas. A bright green laser beam allows you to operate without special laser glasses.

Compensator lock. Self-leveling is equipped with the lock for prevention against damages during transportation. Maximum deviation of the slope angle mustn’t exceed 4°. Laser lines begin to flash when the deviation is out of self-leveling range. Such alarm protects the tool from errors.

Aluminium tripod. The tool comes with the light aluminium tripod with sliding column.

Line laser Instrumax QBiG SET is a great choice for repair work. Compact sizes, bright green beam are ideal for any markings.
