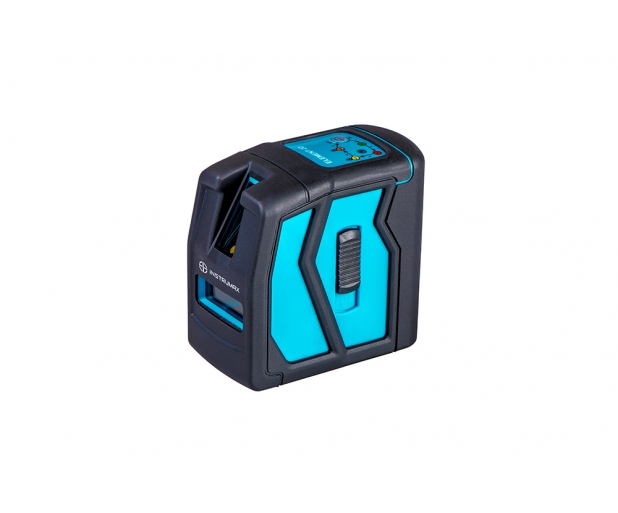

Line laser INSTRUMAX ELEMENT 2D Set

Tech specification

  • Accuracy ±0,2 mm/m
  • Self-leveling range ±4°
  • fan angle of the horizontal beam 120°
  • Fan angle of the vertical beams 160°
  • Dust/water protection IP54
  • Laser color green
  • Laser class 2
  • Batteries, pcs 2
  • NBattery type АА
  • Working range 30 m
  • Working range with the receiver 70 m
  • Thread 1/4”

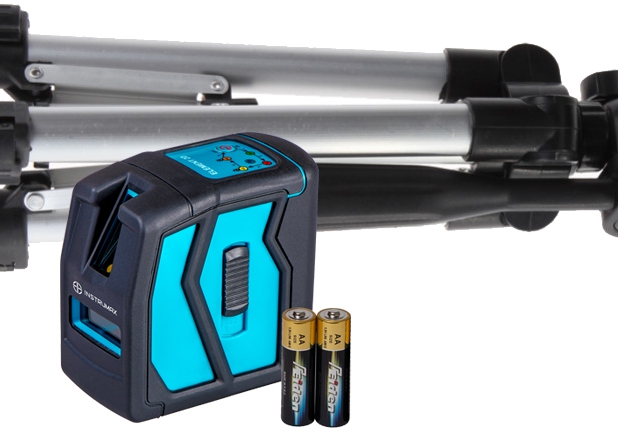

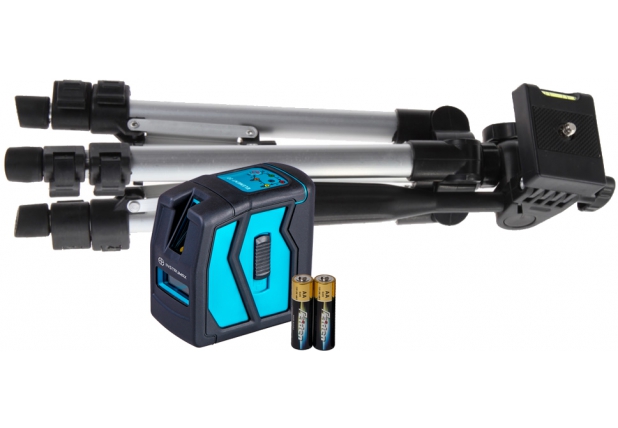

Complectation

  • Line laser
  • Glasses
  • Manual
  • Tripod

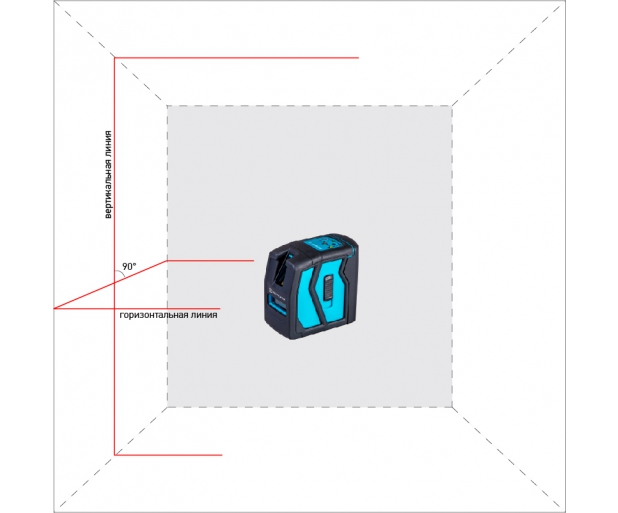

ELEMENT 2D SET — is a compact line laser with wide range of possibilities. It`s used for indoor/outdoor operation. ELEMENT 2D Set builds up 1 vertical and 1 horizontal lines that are intersected at the qangle of 90°. It`s possible to switch off the laser lines in order to save the battery power. Measuring range in the detector mode is up to 50 m. The tool comes with the light aluminium tripod with sliding column.

  • Vertical line 160º
  • TILT mode without self-leveling
  • Automatic self-leveling with accuracy ±0,2 mm/m
  • Detector mode for operation under bright light up to 50 m
  • Switching off the laser lines to save the battery power

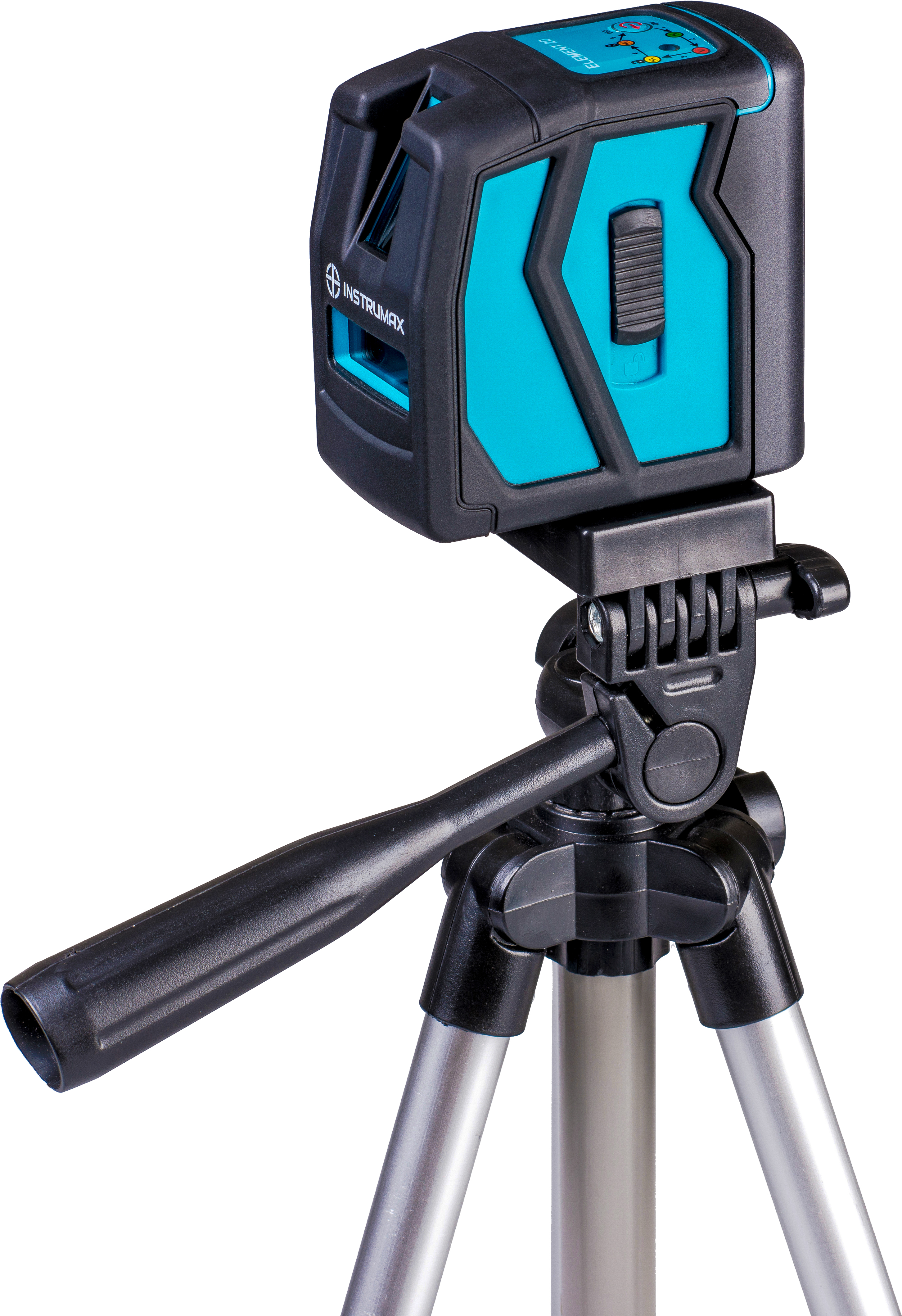

  •  Light aluminium tripod with sliding column
