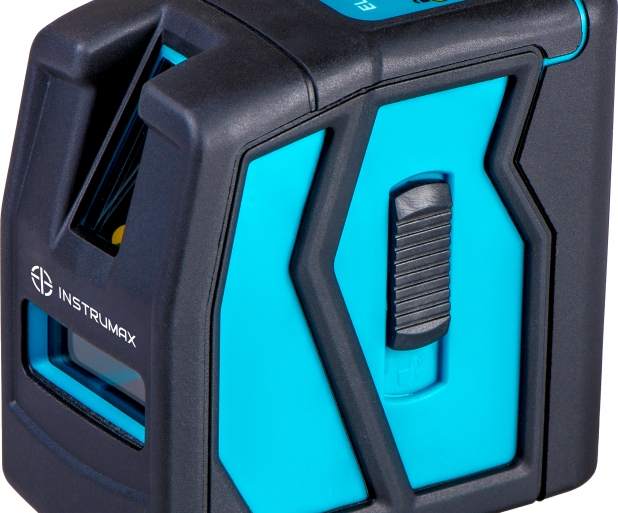

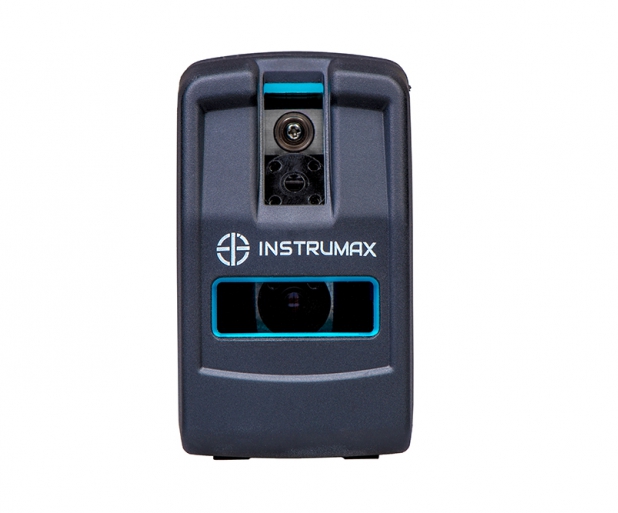

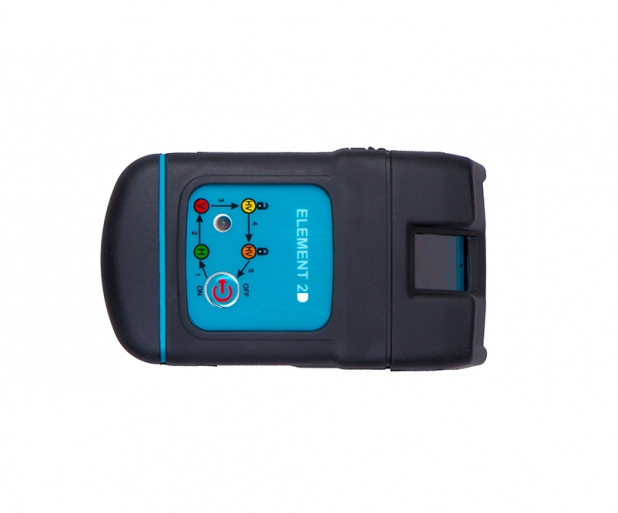

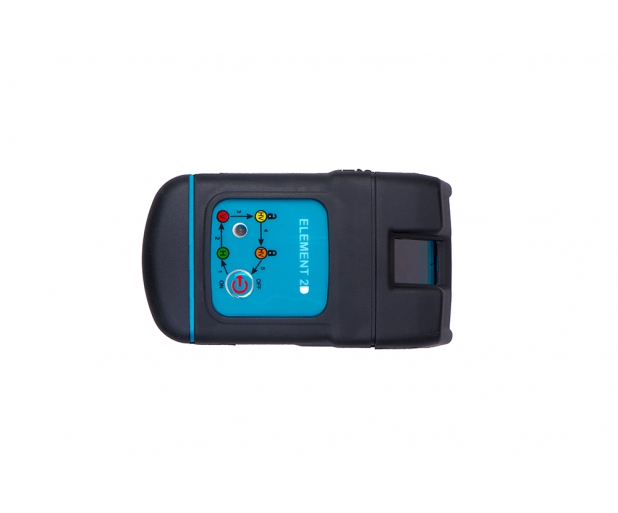

Line laser INSTRUMAX ELEMENT 2D

Tech specification

Accuracy ±0,2 mm/m
Self-leveling range ±4°
Fan angle of the horizontal beam 120°
Fan angle of the vertical beams 160°
Dust/water protection IP54
Laser color red
Laser class 2
Batteries, pcs 2
Battery, type АА
Working range 20 m
Working range with detector 50 m
Thread 1/4”

Complectation

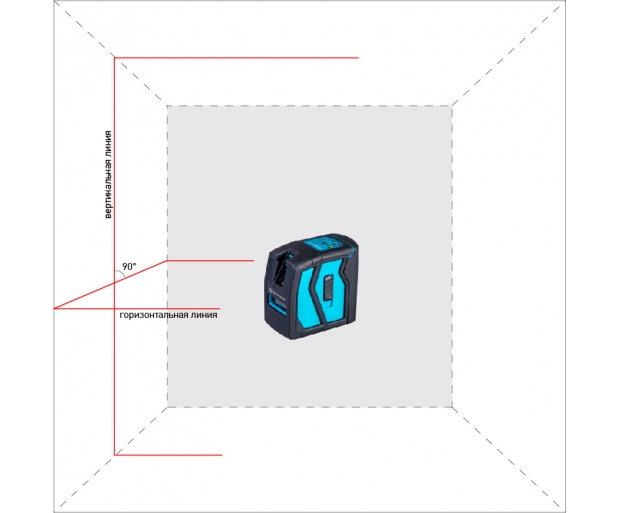

ELEMENT 2D is a compact line laser with wide range of possibilities. It`s used for indoor/outdoor operation. ELEMENT 2D builds up 1 vertical and 1 horizontal lines that are intersected at the qangle of 90°. It`s possible to switch off the laser lines in order to save the battery power. Measuring range in the detector mode is up to 50 m. There is a mode for the marking of inclined lines.

Vertical line 160º
TILT mode without self-leveling
Automatic self-levelin with accuracyt ±0,2 mm/m
Detector mode for operation under bright light up to 50 m
Switching off the laser lines to save the battery power
